Weldtech WT160MP 160A MIG/TIG/ARC Inverter Welder

WT160MP Weldtech 160A MIG/TIG/ARC Inverter Welder

SKU: WT160MP

Product Overview

Weldtech WT160MP 160A MIG/TIG/ARC Inverter Welder

The WT160MP is an inverter welder & has far more weld pool control than the small transformer type mig welders. The stepless voltage & wire feed controls allow the operator to make very fine adjustments to run perfect welds every time.

POWERFUL - 160A welding power up to 8mm steel thickness
PORTABLE - Only 9Kg - super light weight and portable
RELIABLE - Cutting edge Inverter Technology ensures ultimate reliability


 Key Features

  • ARC and MIG function for variety of jobs (TIG Optional)

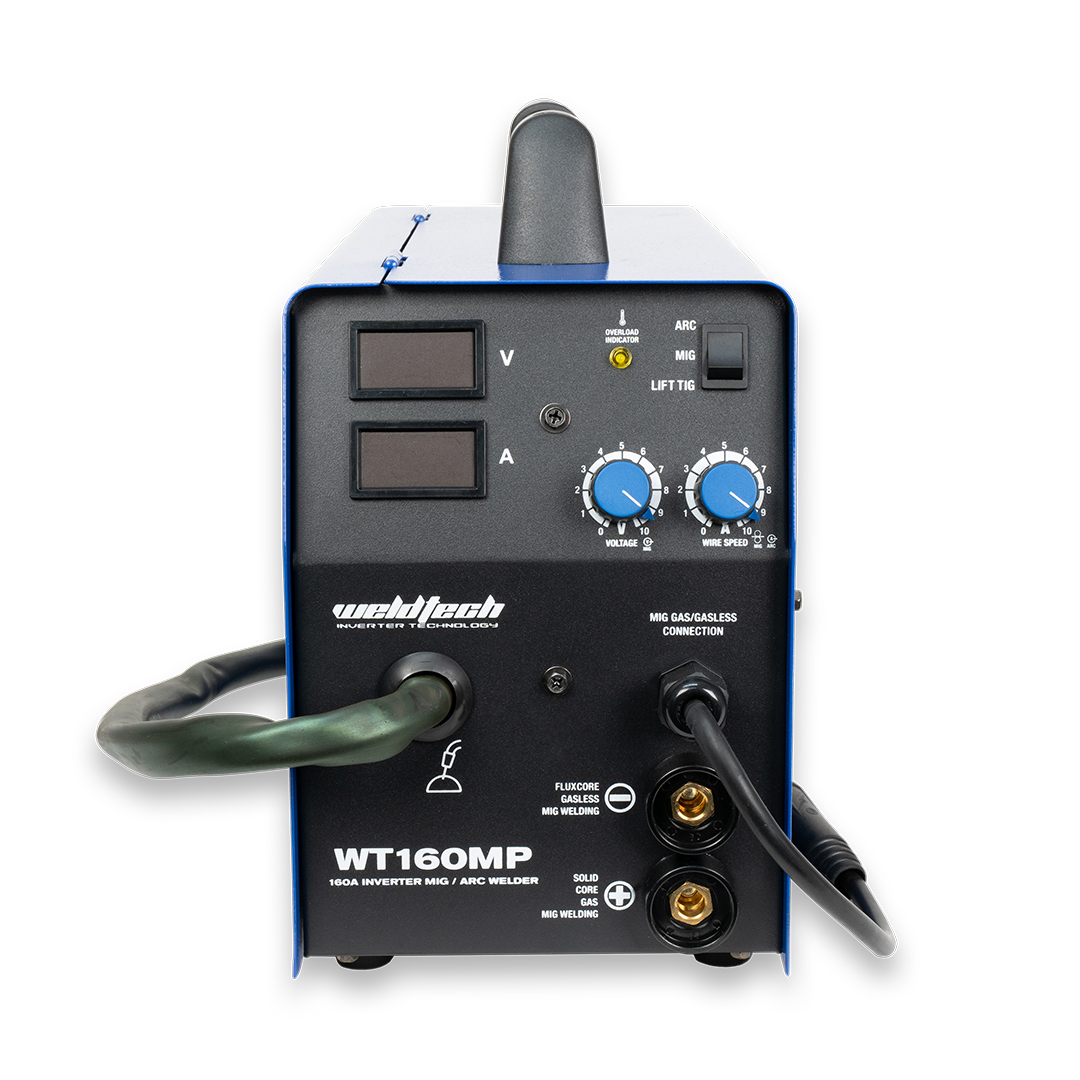

  • Stepless voltage and wire speed control
  • 60% duty cycle @ 130A
  • Lightweight and robust construction - only 9kg
  • Overload protection for increased reliability
  • 1 year commercial Warranty
  • Tig (optional) Requires torch & regulator

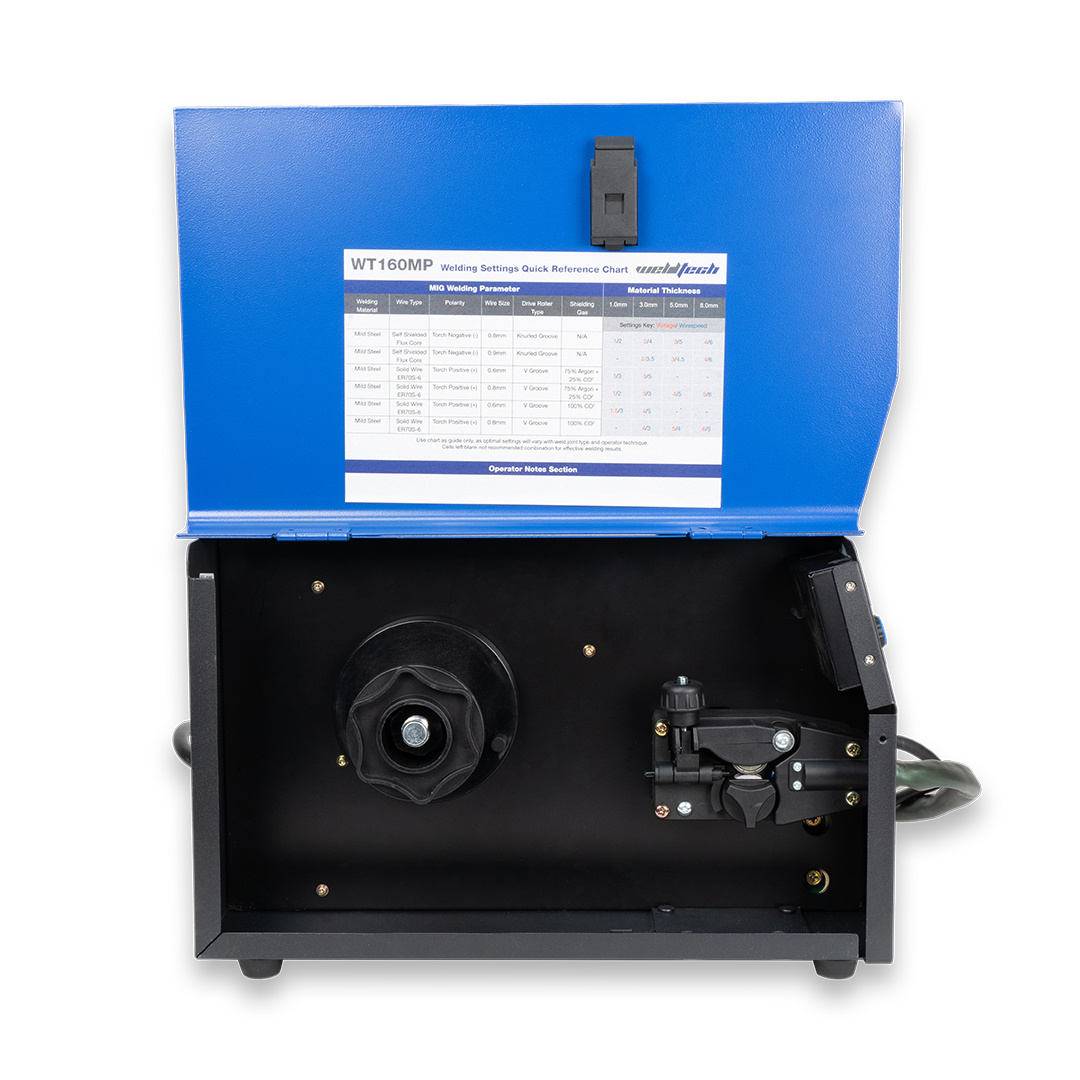

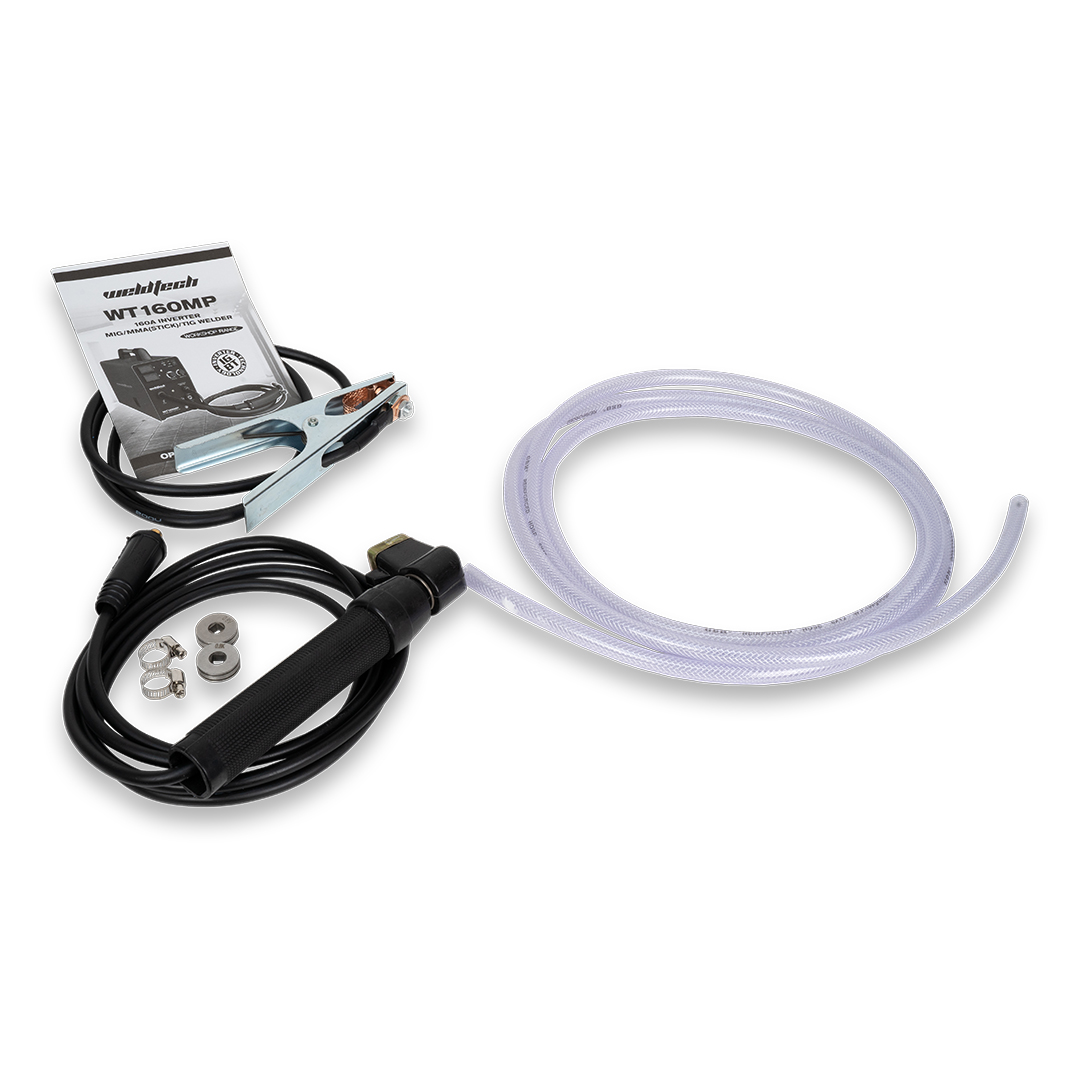

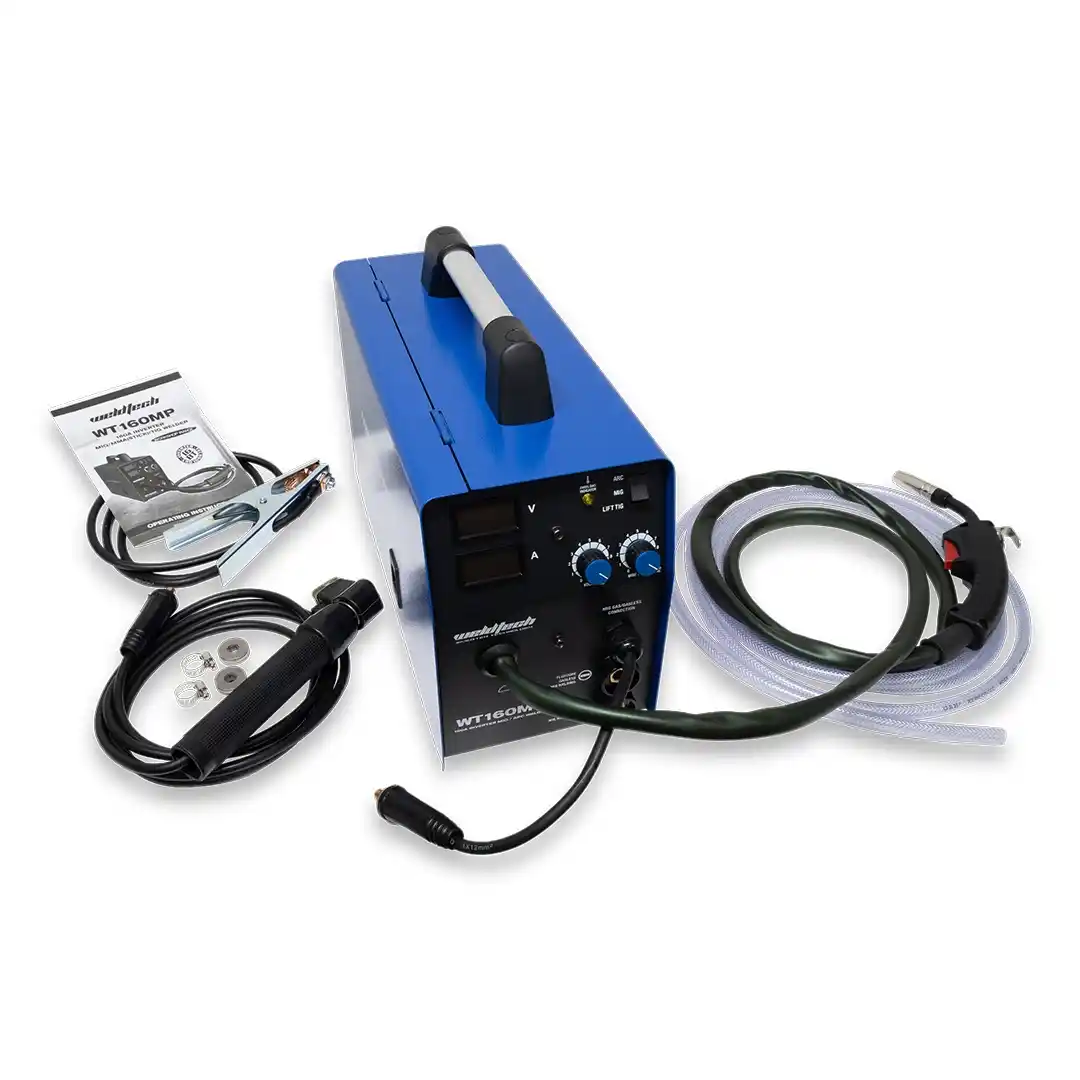

  • Comes with: MB15-2DC Mig Torch, Arc Welding Lead & Earth Lead. V Groove Drive Rollers : 0.6 & 0.8mm (For solid wires shielded with gas) and Knurled Drive Rollers: 0.8, 0.9 & 1.0mm (for flux core / gasless mig wire)



Technical Specifications

Specifications -
Max Inpurt Current21.5AGenerator Capacity5 KVA
Mig Voltage Output15V-22 VMig Current output40A-160A
Mig Duty Circle160A@ 20% 130A@60%, 100A @ 100%MMA/TIG Current Output30A-140A
MMA/TIG Duty Cycle140A@25%, 120A@60%, 100A@100%Insulation ClassIP21
Weight9kgDimention395x165x290mm
Power Efficiency0.85Power Factor0.83

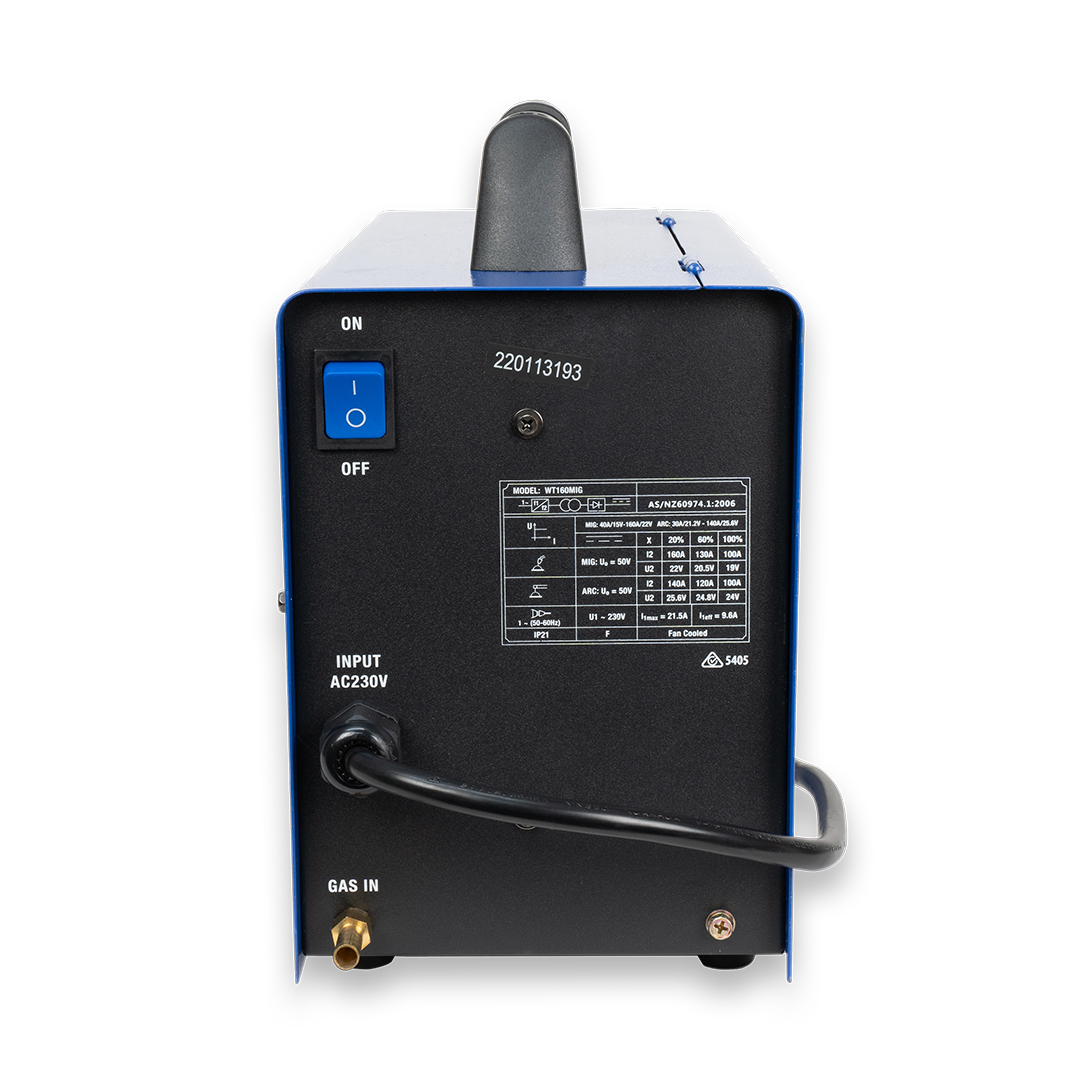

Wire Feeding Speed2-11 m/minuteInput Power Supply230V AC 10A 50/60Hz

Documents & Downloads

document
Information Sheet PDF • 1.6MB
document
Spare Parts List
document
Instruction Manual PDF • 6.4MB
document
Safety Data Sheet

FAQ's

What welding processes can the WT160MP perform?

What makes this welder different from small transformer MIG welders?

What duty cycle does it offer?

How powerful is this machine?

Can I fine-tune my weld settings?

Does it come with overload protection?
