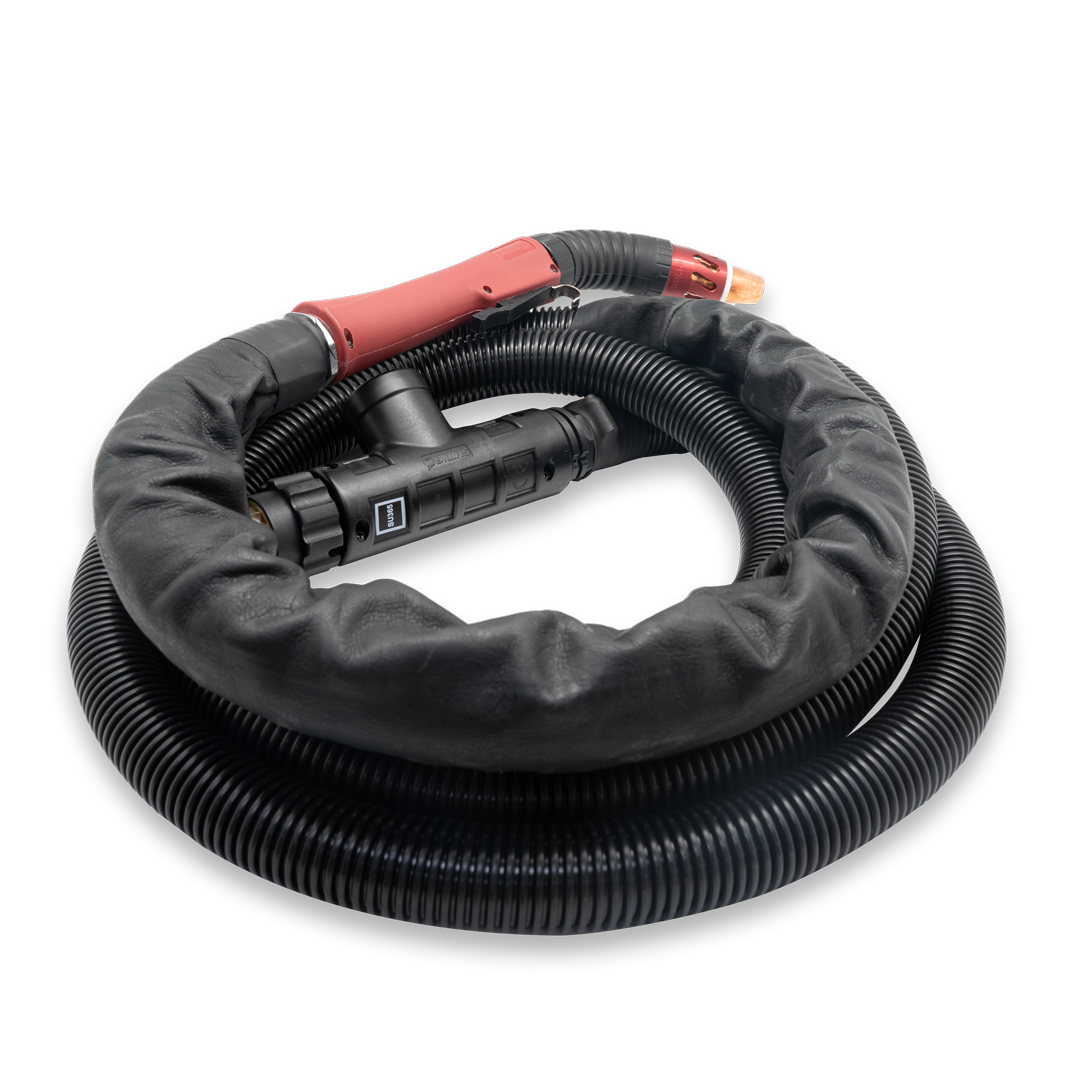

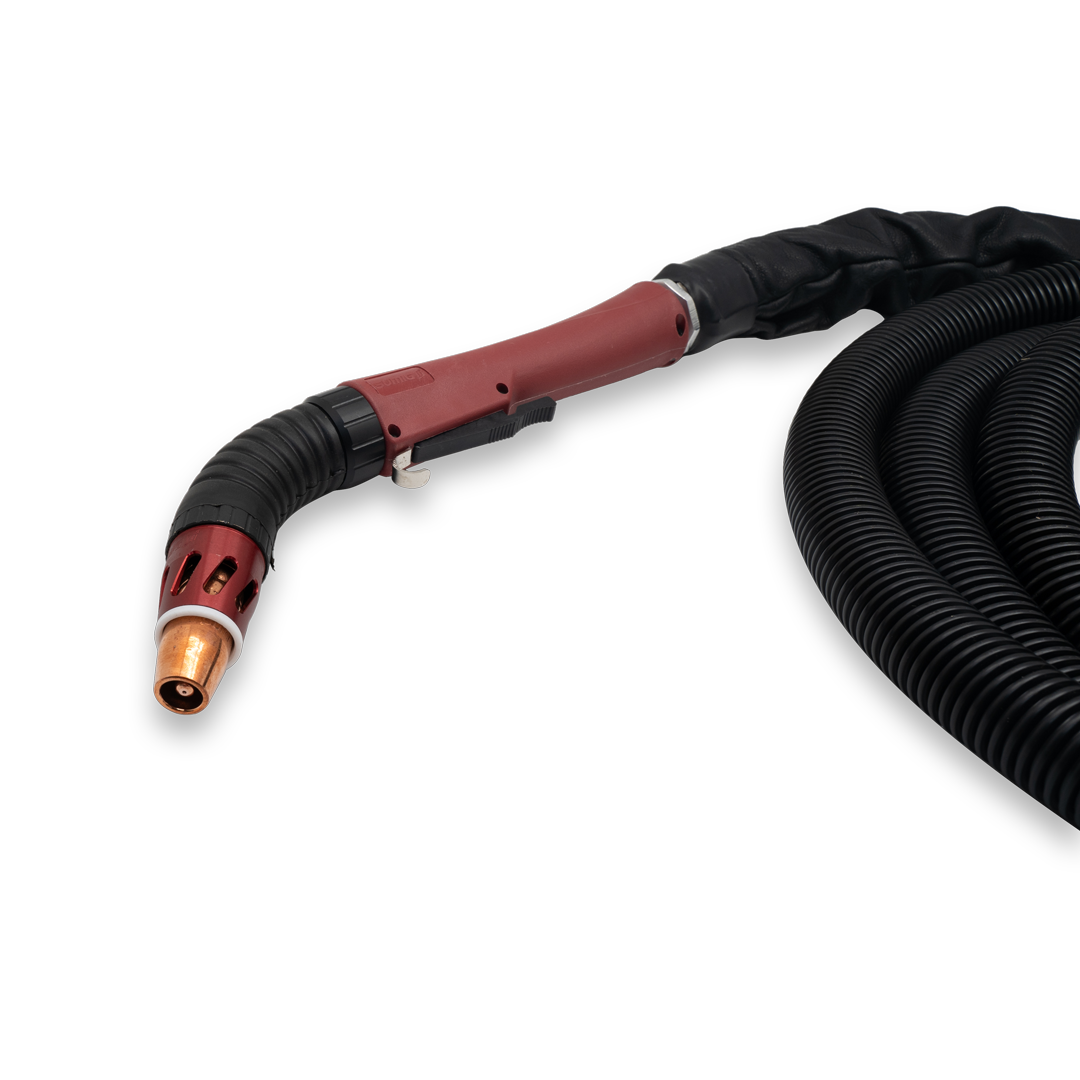

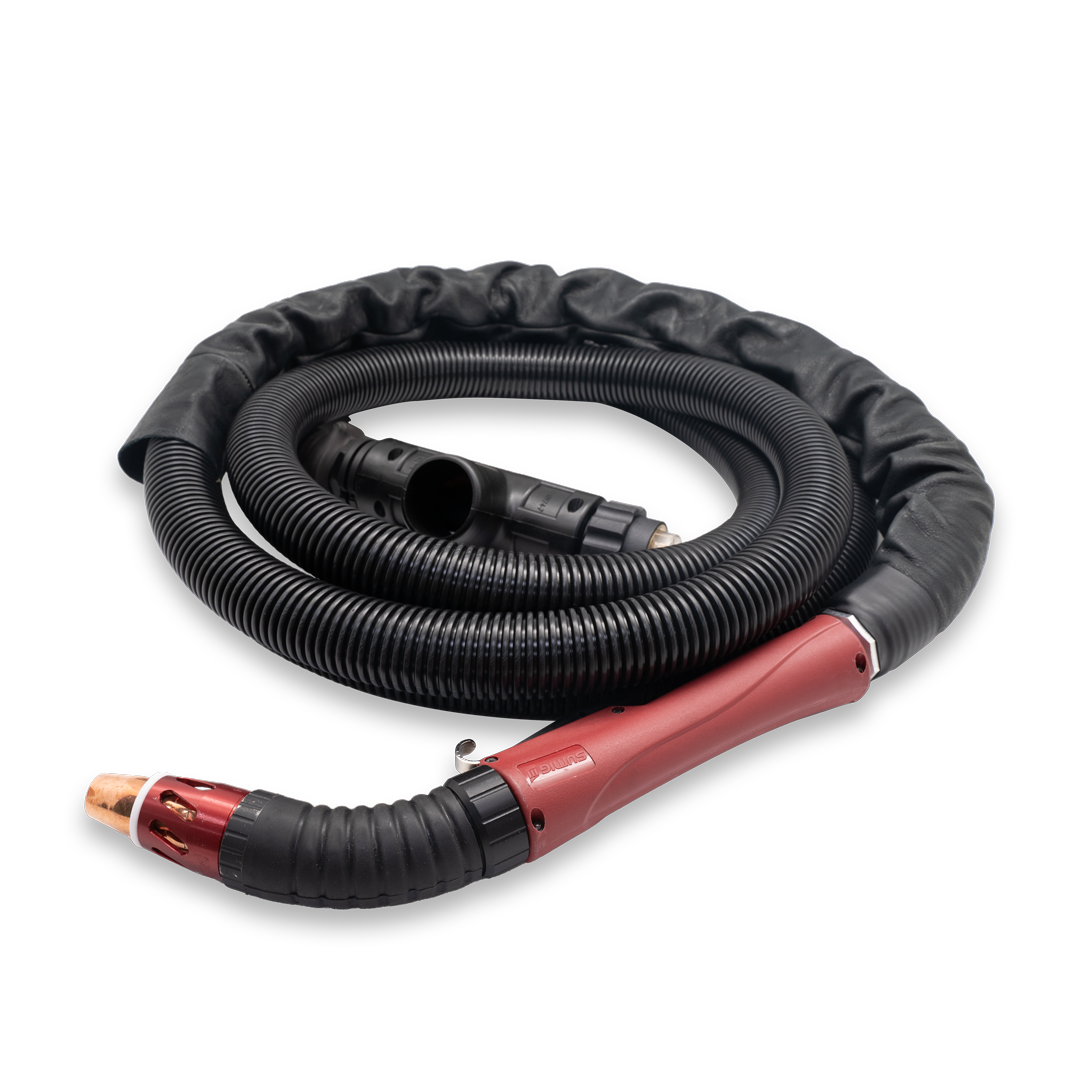

Strata MFG365 Fume Extraction Mig Torches

Strata MFG365 Fume Extraction Mig Torches - Available in 3M and 4.5M

SKU: MFG365-3E

Product Overview

Strata MFG365 Fume Extraction Mig Torches

Key Features

  • Air cooled euro connection fume extraction Mig torches, designed for use in conjunction with fume extraction system
  • Reduced weight for operator
  • Long handle, with swivel bracket, compatible with short, medium and long trigger
  • Various types of aluminum exhaust nozzles - tapered or inverted for different applications
  • Equipped with exhaust control
  • Optional welding tips for hard-to-reach places
  • Perfect for closed or poorly ventilated environments
  • Suitable for use with solid, flux core, aluminium and stainless steel wires
  • Duty cycle - 325A @ 60% (CO2), 285A @ 60% (Argon/Mixed gas)
  • Suitable to use with wires from 0.8mm to 1.2mm
  • Available in 3M or 4.5M length

Technical Specifications

Binzel xFUME® PRO 36 Fume Extraction Torches -
CoolingAir CooledRating - CO2325A
Rating - Mixed Gas285AWire Diameter0.8 - 1.2mm
