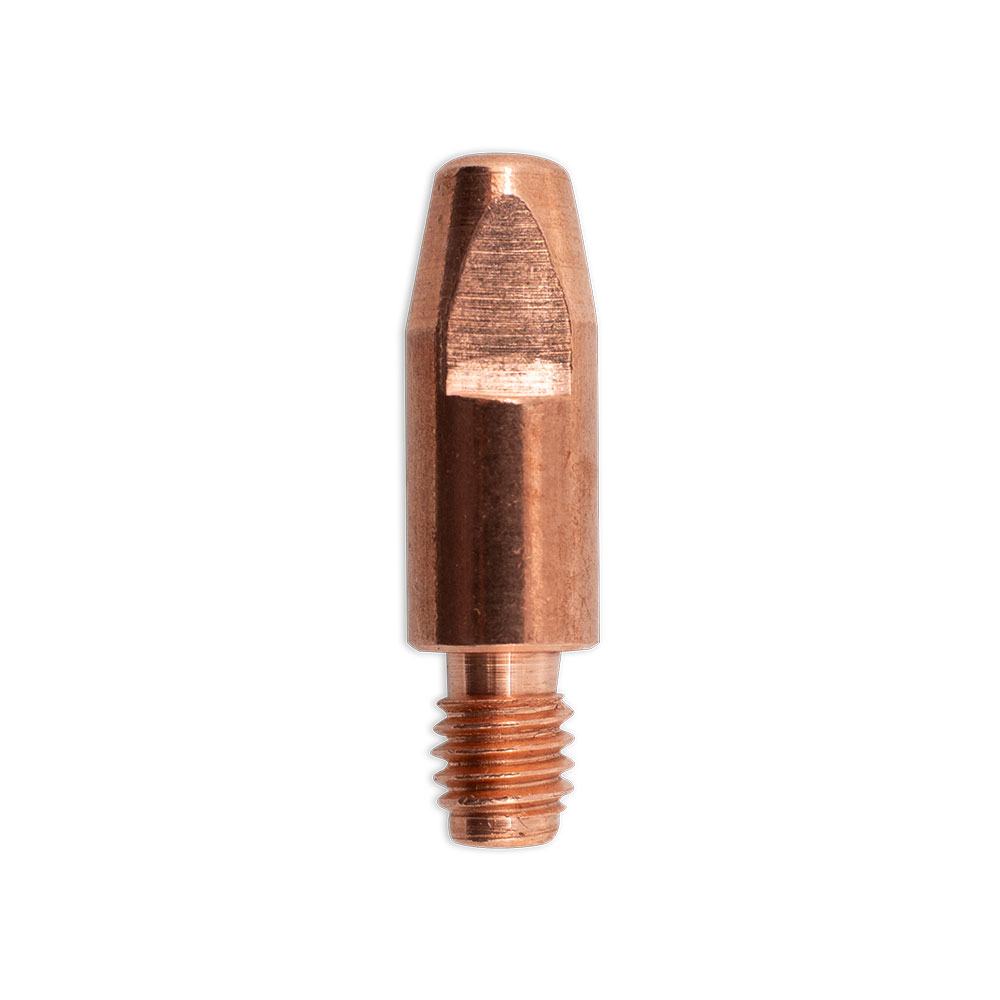

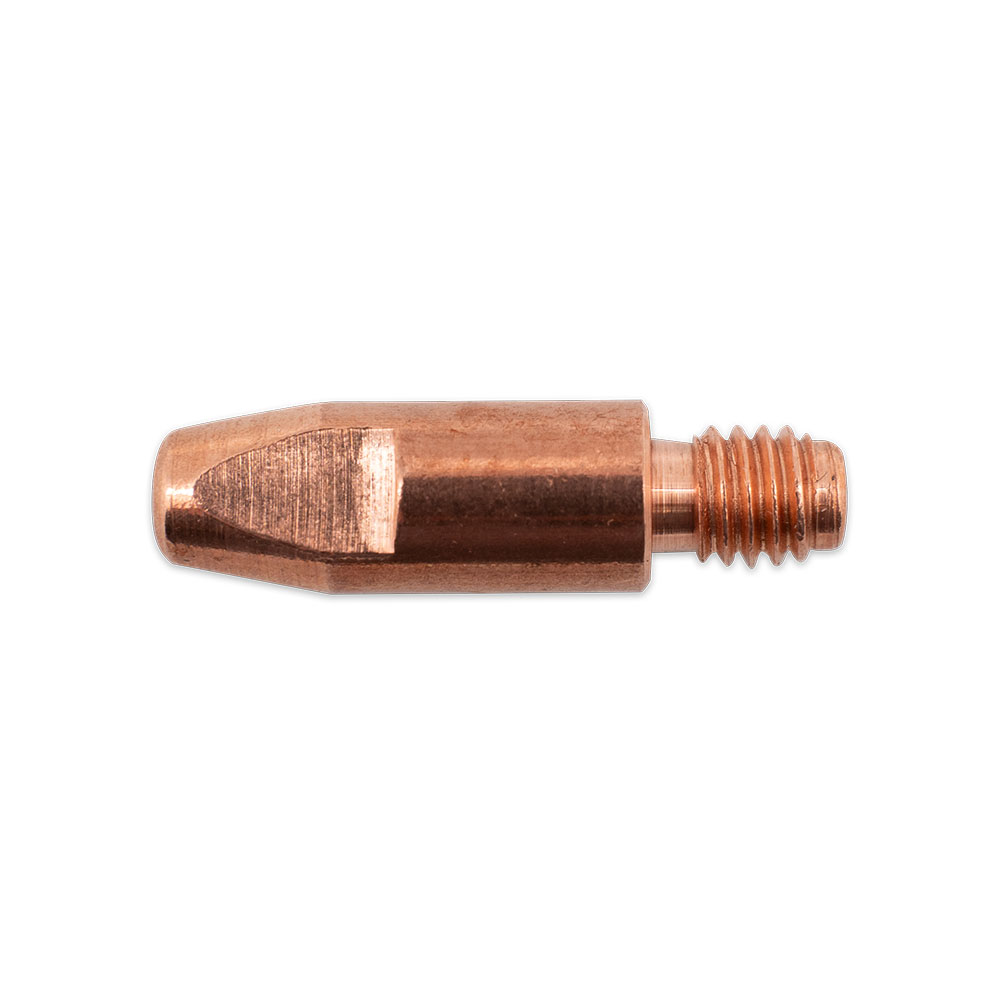

Binzel Style MB24 Mig Tips 5PK

Binzel Style MB24 Mig Tips. Size M6 x 28mm. Available in wire size 0.8mm-1.6mm. 5PK

SKU: MMT2406

Product Overview

Binzel Style MB24 Mig Tips 5PK

Key Features

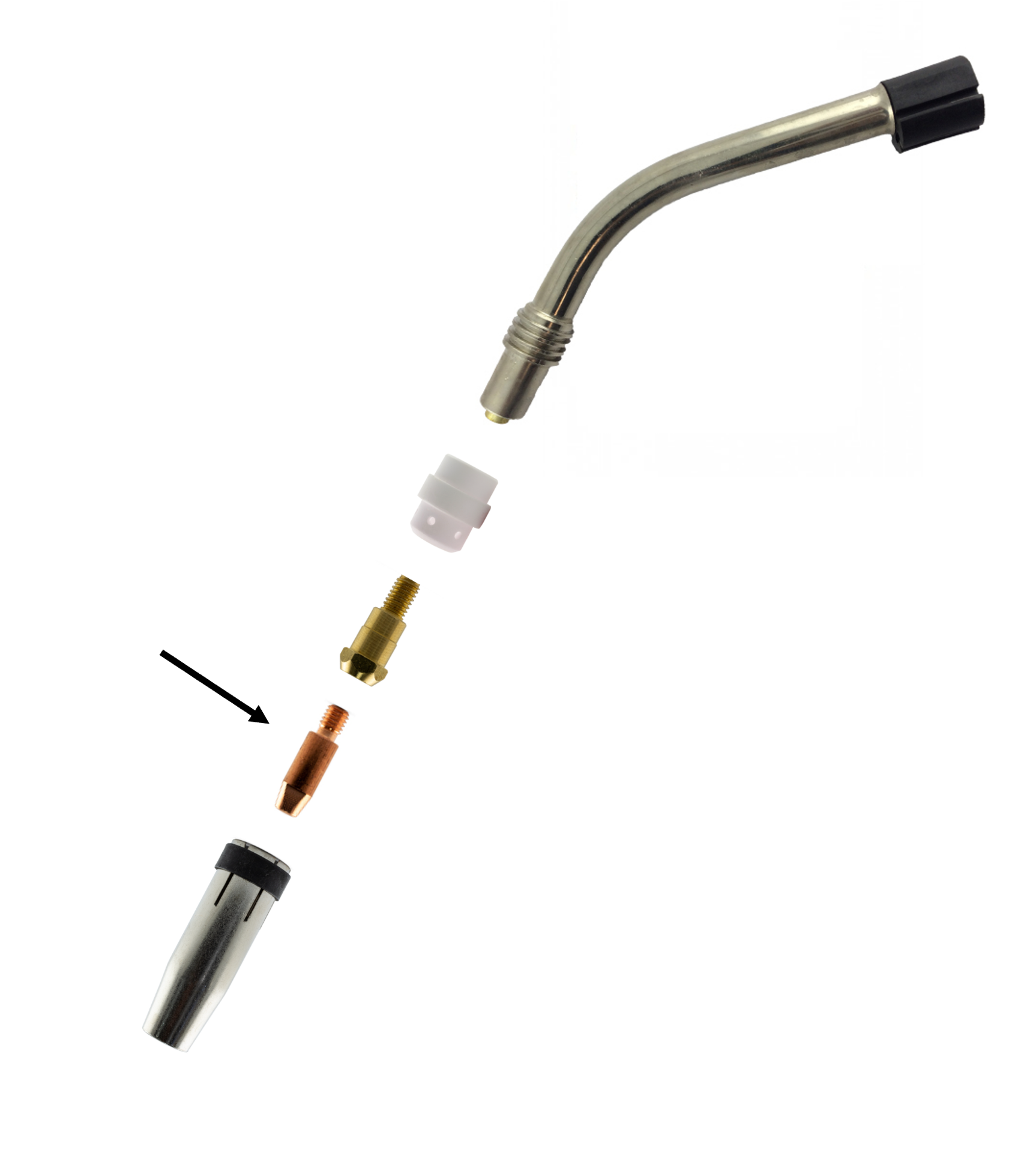

  • Mig tips for MB24 (MT240) Mig torch

  • High quality, durable copper tips for extended service life.

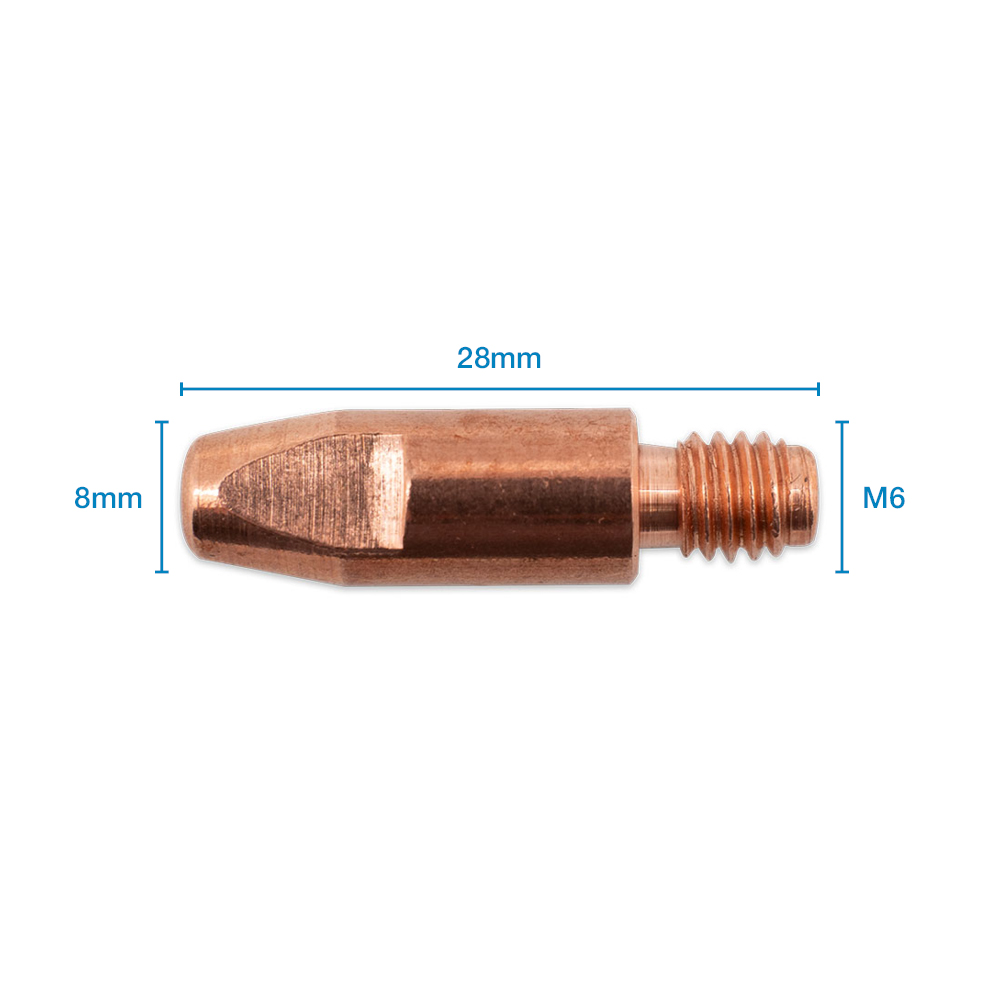

  • Size: Thread M6, Length 28mm, Diameter 8mm

  • For all types of mig wire including aluminium* & flux-core** mig wires.

  • Available in wire size 0.6mm (MMT2406), 0.8mm (MMT2408), 0.9mm (MMT2409), 1.0mm (MMT2410), 1.2mm (MMT2412), 1.4mm (MMT2414), 1.6mm (MMT2416), 1.0mmAL (MMT2410AL) and 1.2mmAL (MMT2412AL)

  • For aluminium wire, we recommend using one tip size larger than the aluminium wire size used. This allows for the extra heat expansion you get with aluminium. Example: For 0.8mm aluminium, use a 0.9mm tip. For 1.0mm aluminium, use a 1.0mmAL tip which is 1.1mm.

  • For high-heat flux-core welding, we also recommend moving up a tip size as per the above.

  • Sold as 5 Pack except for MMT2410AL

Documents & Downloads

document
Information Sheet
document
Spare Parts List PDF • 650.9KB
document
Instruction Manual
document
Safety Data Sheet
