Air Command

Air Command WS5.5CI 5.5HP Compressor

Air Command WS5.5CI 3 phase air compressor delivers high airflow and reliable performance for workshops and industrial use. Ideal for running multiple air tools with consistent pressure.

SKU: 41797

Product Overview

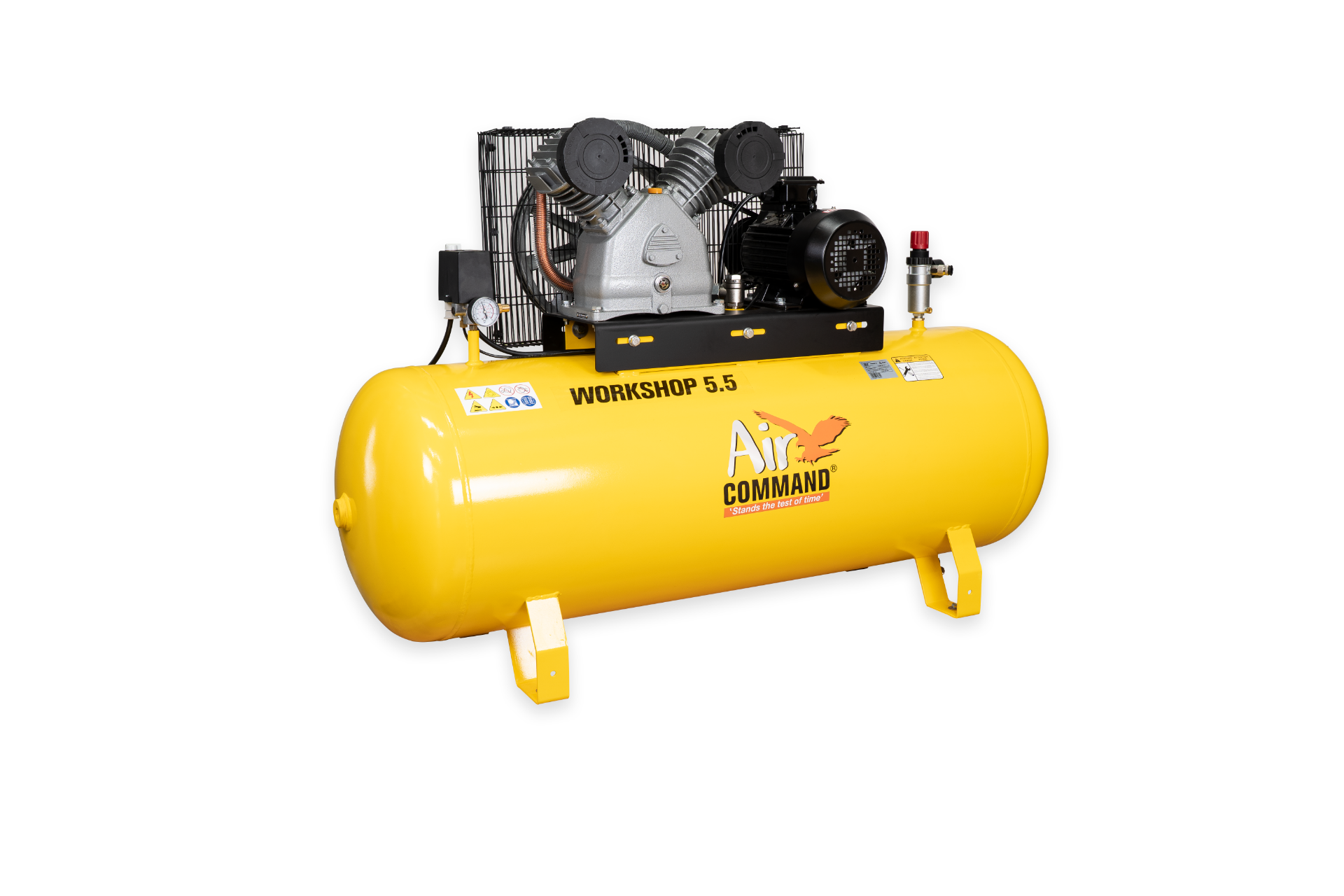

Air Command WS5.5CI 5.5HP Compressor

The Air Command WS5.5CI three phase air compressor is a heavy-duty workshop solution built for automotive, dairy, and industrial environments. Powered by a 5.5HP (4kW) motor and paired with a robust cast iron pump, it delivers consistent airflow for demanding applications. With a large 300L tank and reliable performance at working pressure, it’s designed for professionals needing dependable compressed air for continuous tool operation.

High-Power Three Phase Performance
Equipped with a 5.5HP (4kW) three phase motor, this compressor delivers strong airflow output for running multiple pneumatic tools efficiently in busy workshop environments.

Heavy-Duty Cast Iron Pump
V-type 2-cylinder cast iron pump operates at low RPM, reducing wear and extending service life. Built for durability, it ensures reliable performance under continuous industrial use.

Large 300L Air Tank Capacity
Massive 300L receiver provides extended air reserve, allowing longer run times and reducing cycling. Ideal for high-demand applications requiring steady and uninterrupted airflow.

Consistent Working Pressure Output
Delivers 690 L/min 24cfm FAD at 90 PSI, ensuring stable and reliable air supply. Maintains consistent tool performance even during prolonged operation.

Reliable Safety and Control System
Fitted with a Condor MDR3 pressure switch for overload protection and dependable shut-off. Ensures safe operation while protecting internal components from damage.

Smooth and Stable Operation
Separate pump and motor mounting with rubber shock mounts reduces vibration and noise. Enhances operational stability and simplifies maintenance in workshop settings.

Versatile Air Delivery Setup
Includes built-in filter/regulator, quick-connect outlets, and ½" ball valve for flexible air distribution. Supports multiple tools with clean, controlled air supply.

Water Trap and Pressure Regulator included!



Key Features

4kW / 5.5HP 3 Phase 400V IE2 Motor
300L Tank Capacity
763L/min 27cfm Pump Displacement
10bar/145PSI Max Working Pressure

Technical Specifications

Specifications -
Motor4kW / 5.5HP 3 Phase 400V IE2Dimensions(L x W x H)160 x 50 x 106cm
Pump TypeV' 2 Cylinder Cast Iron Single StageReceiver Size300L
Pump Displacement763L/min 27cfmPump Speed (RPM)1150
Sound Pressure Level80dBAWeight209kg
Power Supply400V 3 Phase 16AWorking Pressure10bar / 145PSI
Duty Cycle60%FAD @ Working Pressure690 L/min 24cfm

Documents & Downloads

document
Information Sheet PDF • 970.2KB
document
Spare Parts List
document
Instruction Manual PDF • 1.5MB
document
Safety Data Sheet

FAQ's

What type of workshop is the WS5.5CI designed for?

Can this compressor run multiple tools at the same time?

What power supply is required?

How much air output does this compressor deliver?

Why is the 300L tank size important?

Does this compressor have built-in air management features?
