Air Command

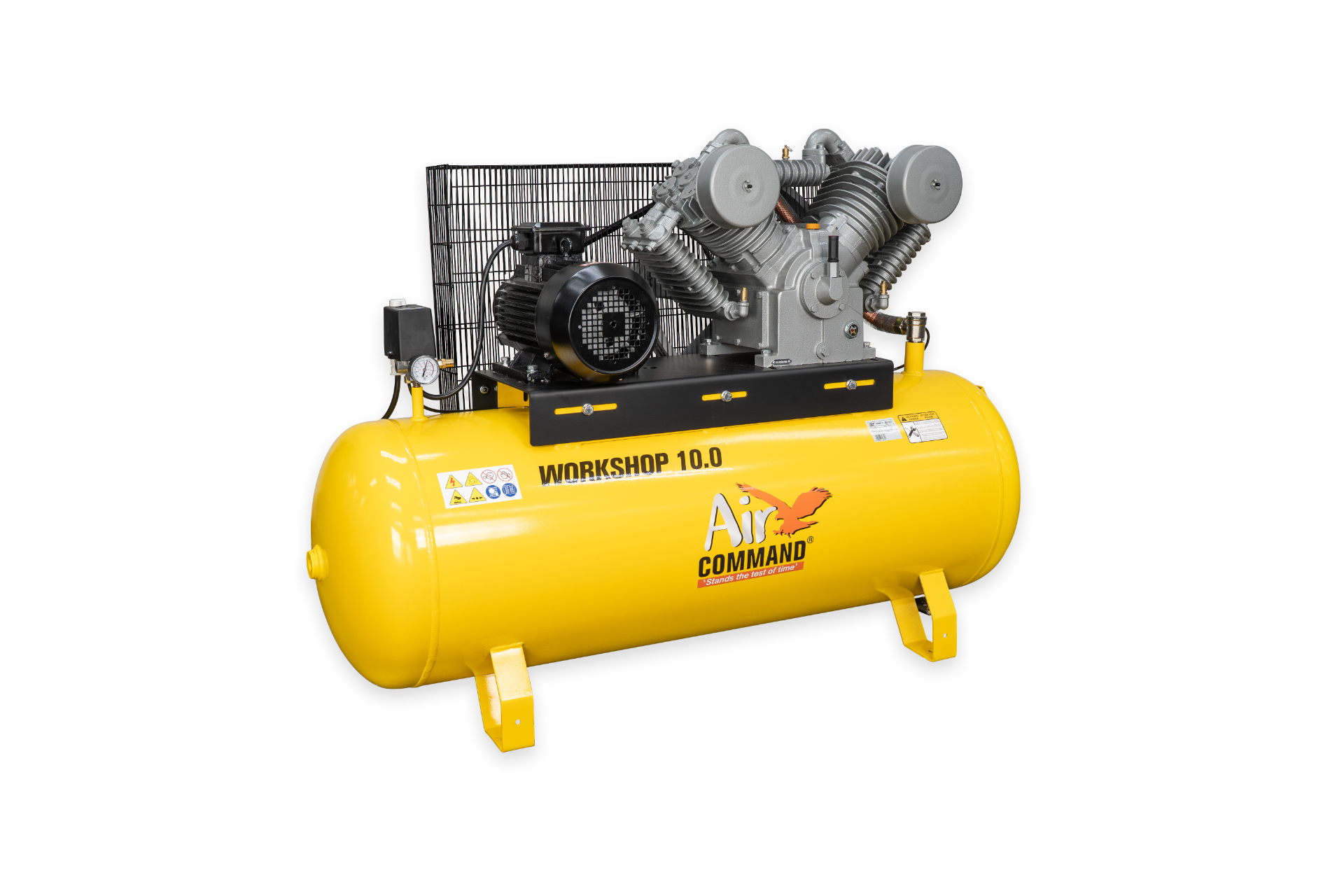

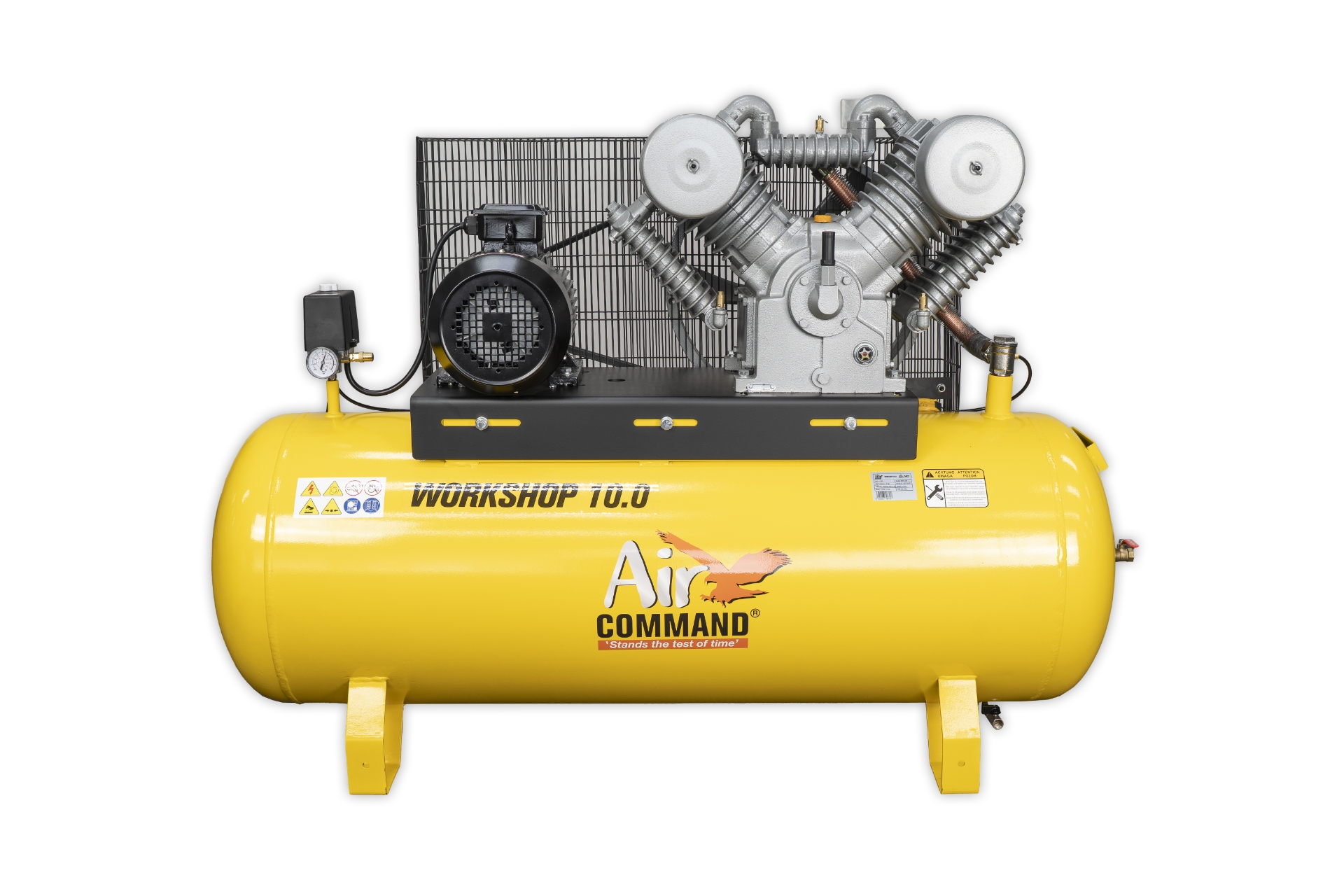

Air Command WS10.0CI 10HP Compressor

A heavy-duty 10HP, 300L three-phase air compressor delivering huge output and continuous performance—engineered for demanding industrial applications.

SKU: 41799

Product Overview

Air Command WS10.0CI 10HP Compressor

The WS10.0CI 10HP 300L Three-Phase Workshop Air Compressor (400V) is built for top-tier industrial and workshop performance. With its powerful 10HP motor and twin-stage, slow-revving pump, it delivers outstanding airflow while running cooler, more efficiently, and with extended service life.

Backed by a large 300L tank, this compressor provides continuous, high-demand air delivery with fewer interruptions. Featuring a built-in filter/regulator, quick-connectors, and a ½" outlet ball valve, it offers versatile air access for a wide range of workshop tools and applications.

Key Features

Ultimate Air Power
10HP 3-phase motor with a huge 1305L/min 46cfm pump displacement delivers industry-leading performance for the most demanding air applications.

Outstanding Output at Working Pressure
1187L/min 42cfm FAD at 90 PSI for continuous operation of multiple high-demand air tools.

Massive 300L Air Tank
Huge reserve for extended run times without stopping for refills.

 Slow-Revving, Heavy-Duty Pump
4-cylinder cast iron twin-stage design runs at just 770 rpm for cooler operation, greater efficiency, and maximum pump life.

Two-Stage Pump Design
Increased efficiency at working pressure, reduced power consumption, and drier air output for better tool performance.

Reliable & Safe
German made Condor MDR3 pressure switch for overload protection and reliable shut-off, plus CE-approved safety across all components.

Smooth & Stable Operation
Separate pump and motor mounting plate with rubber foot kit to reduce vibration and simplify maintenance.

Quiet for Its Class
80 dB(A) sound level for a more comfortable working environment.

Peace of Mind
Backed by a 24-month commercial warranty and Air Commands industry leading parts & service support.

Key Features

7.5kW / 10HP 3 Phase 400V IE2 Motor
300L Tank Capacity
1305L/min 46cfm Pump Displacement
10bar/145PSI Max Working Pressure

Technical Specifications

Specifications -
Motor7.5kW / 10HP 3 Phase 400V IE2Dimensions(L x W x H)160 x 53 x 113cm
Pump TypeV' 4 Cylinder Cast Iron Twin StageReceiver Size300L
Pump Displacement1305L/min 46cfmPump Speed (RPM)770 RPM
Sound Pressure Level80dBAWeight311kg
Power Supply400V 3 Phase 20AWorking Pressure10bar / 145PSI
Duty Cycle60%FAD @ Working Pressure1187L/min 42cfm
