Air Command AC7.5CP Compact Petrol Compressor 16L PDX230 Engine

Compact petrol air compressor built for mobile trade use. Vehicle-mount ready with reliable airflow to power tools on-site, improving efficiency for service trucks and field technicians.

SKU: 42469

Product Overview

Air Command AC7.5CP Compact Petrol Compressor 16L PDX230 Engine

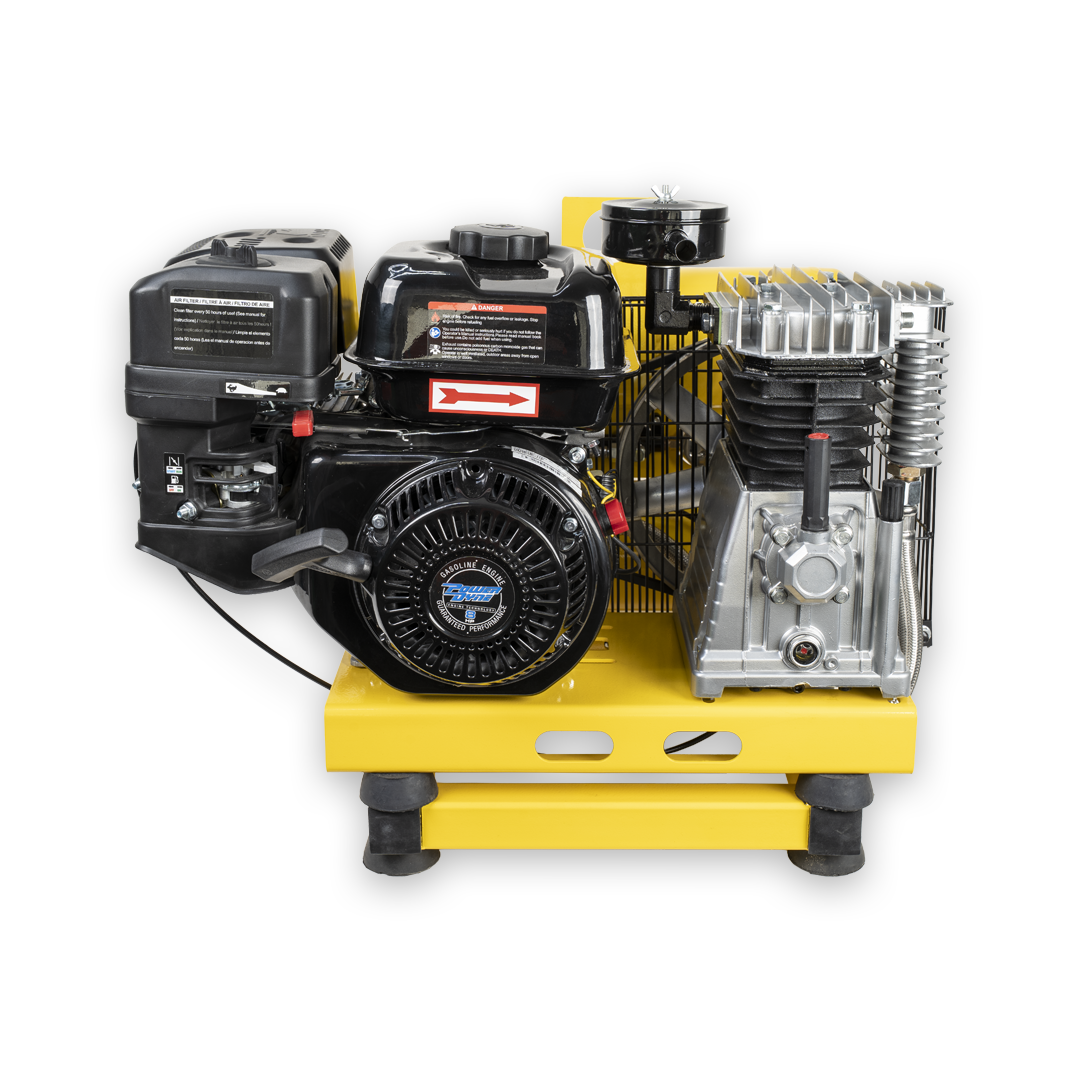

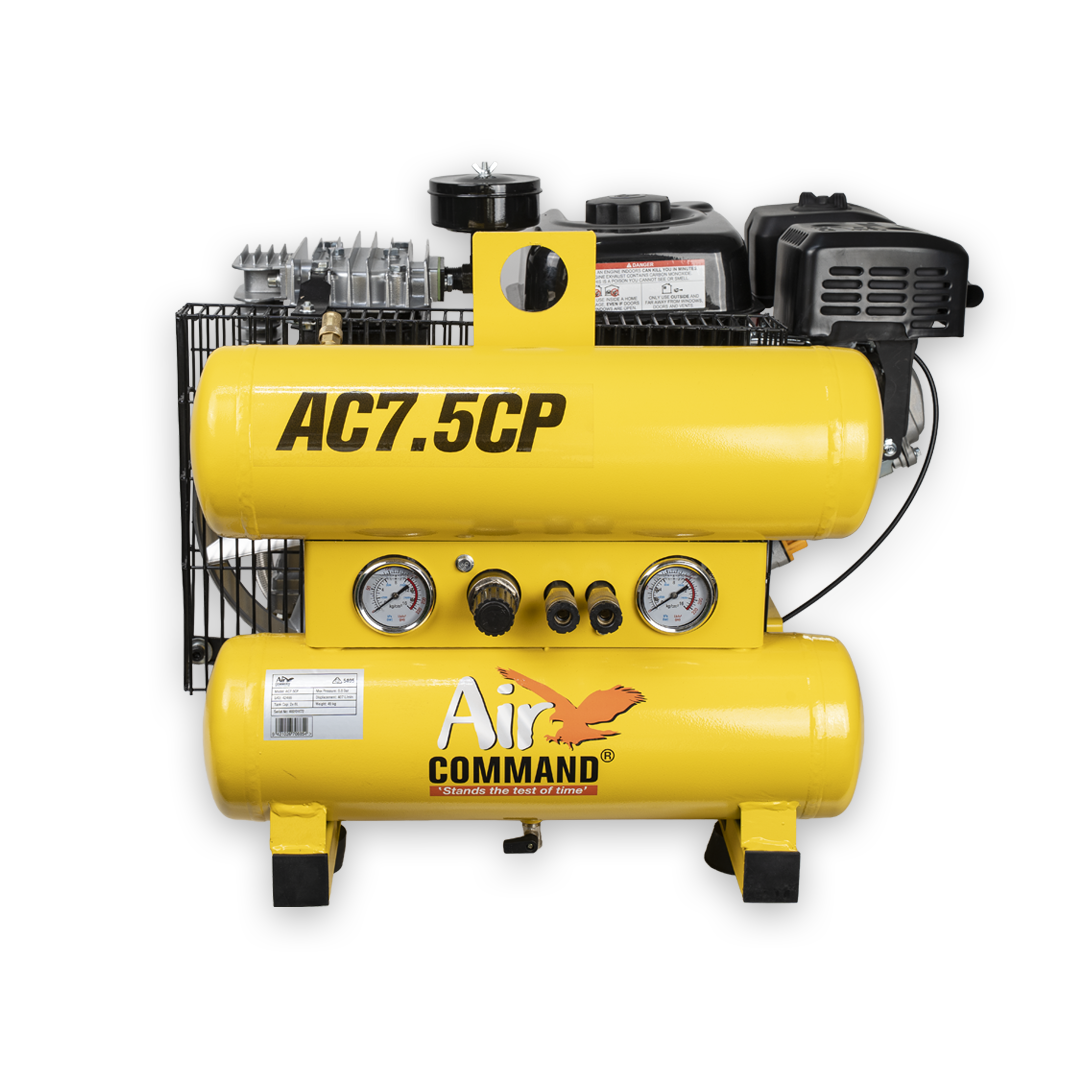

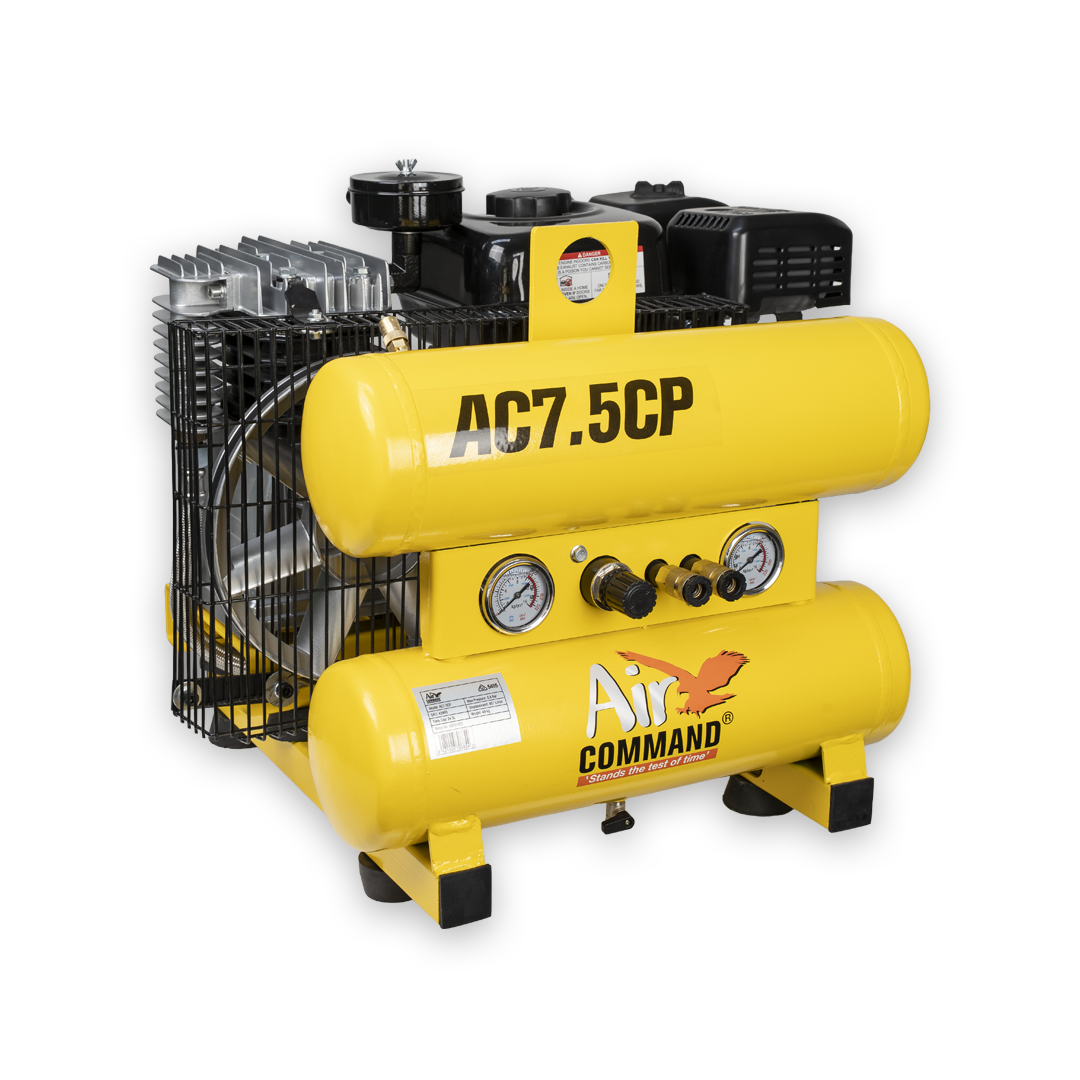

The Air Command AC7.5CP petrol air compressor is a compact, vehicle-mounted solution designed for tradespeople, mobile technicians, and service crews needing reliable compressed air on the go. Powered by an 8HP Powerdyne 4-stroke engine, it delivers strong airflow to operate demanding pneumatic tools in remote and on-site environments. Its durable twin-cylinder pump and twin tank setup make it ideal for continuous use where portability and performance are essential.

Compact Vehicle-Mount Design

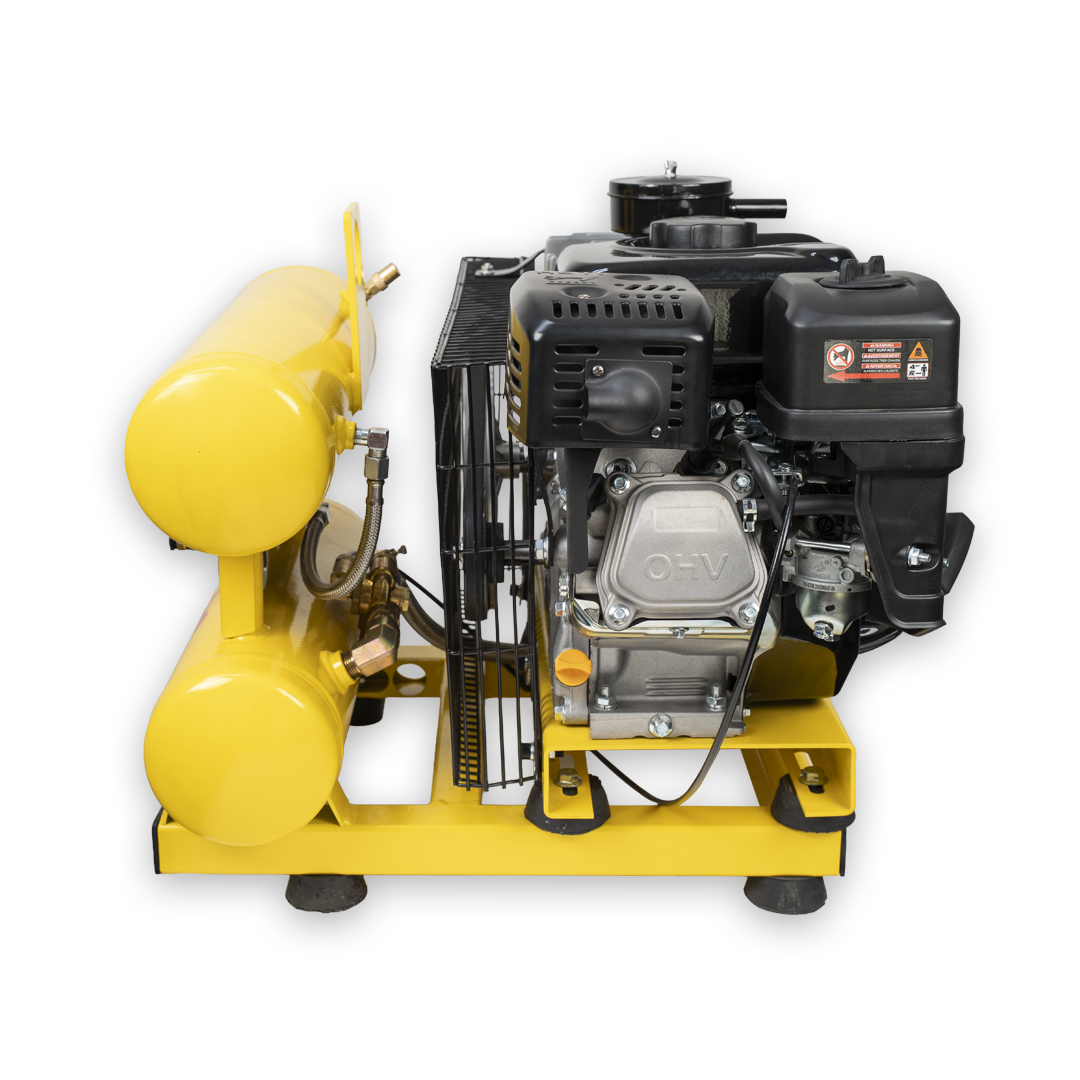

Twin 8L tanks create a space-efficient footprint that fits neatly onto service vehicles. This design ensures on-demand compressed air without taking up excessive tray space, ideal for mobile operations.

Powerdyne 8HP Petrol Engine
Fitted with a reliable 8HP 4-stroke Powerdyne engine, this compressor delivers consistent performance and easy starting, making it well-suited for remote job sites without access to mains power.

High Airflow Performance
Producing up to 487 L/min (17.2 CFM), the AC7.5CP provides the airflow required to run demanding pneumatic tools efficiently, helping reduce downtime and maintain productivity.

Heavy-Duty Twin Cylinder Pump

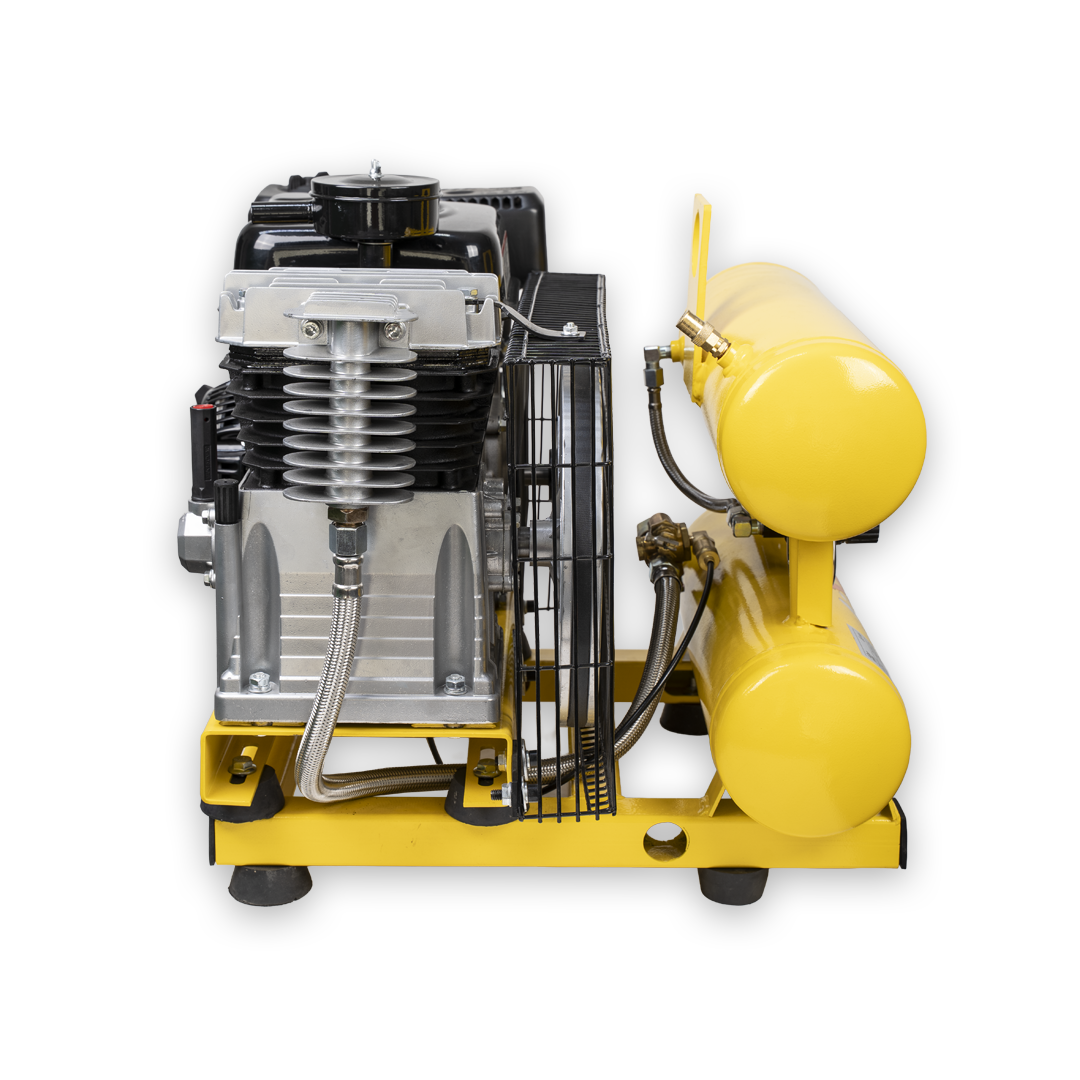

The aluminium inline twin-cylinder pump with cast iron barrels and aftercooler runs cooler under load. This reduces wear and extends service life in demanding trade environments.

Automatic Idle Control
The Conrader pneumatic idle control system reduces engine speed when not in use, lowering fuel consumption, minimising noise, and reducing mechanical wear over time.

Dual Outlets for Multi-Tool Use
Equipped with twin 1/4" quick-connect outlets, the compressor supports multiple tools or users simultaneously, improving workflow efficiency on busy job sites.

Key Features

Powerdyne 8hp 4 Stroke Petrol Engine
487 l/min 17.2 cfm Pump Displacement
Aluminium Inline 2 Cylinder

Technical Specifications

Specifications -
Dimension670 x 570 x 570mmWeight49kg
Pump TypeAluminium Inline 2 Cylinder- Cast Iron Barrel with aftercoolerEnginePowerdyne 8hp 4 Stroke Petrol Engine
Receiver Size2x 8LPump Displacement487 l/min 17.2 cfm
FAD @ 0 psi443 l/min 15.6 cfmFAD @ 7 bar285 l/min 10 cfm
Max Pressure130 PSI 9 BarPump Speed (RPM)1150 rpm
Fuel Tank Capacity3.6LPump Oil Capacity0.7L
Drive Belt SpecificationA1041Air Outlet2x 1/4" Aro Type Quick Connect
Sound Pressure Level72 dBa

Documents & Downloads

document
Information Sheet PDF • 396.3KB
document
Spare Parts List
document
Instruction Manual PDF • 818KB
document
Safety Data Sheet

FAQ's

What applications is the Air Command AC7.5CP best suited for?

How much airflow does the compressor produce?

What is the benefit of the twin-cylinder pump design?

What type of engine powers the AC7.5CP compressor?

Why does the compressor use twin air tanks?

What does the automatic idle control system do?
