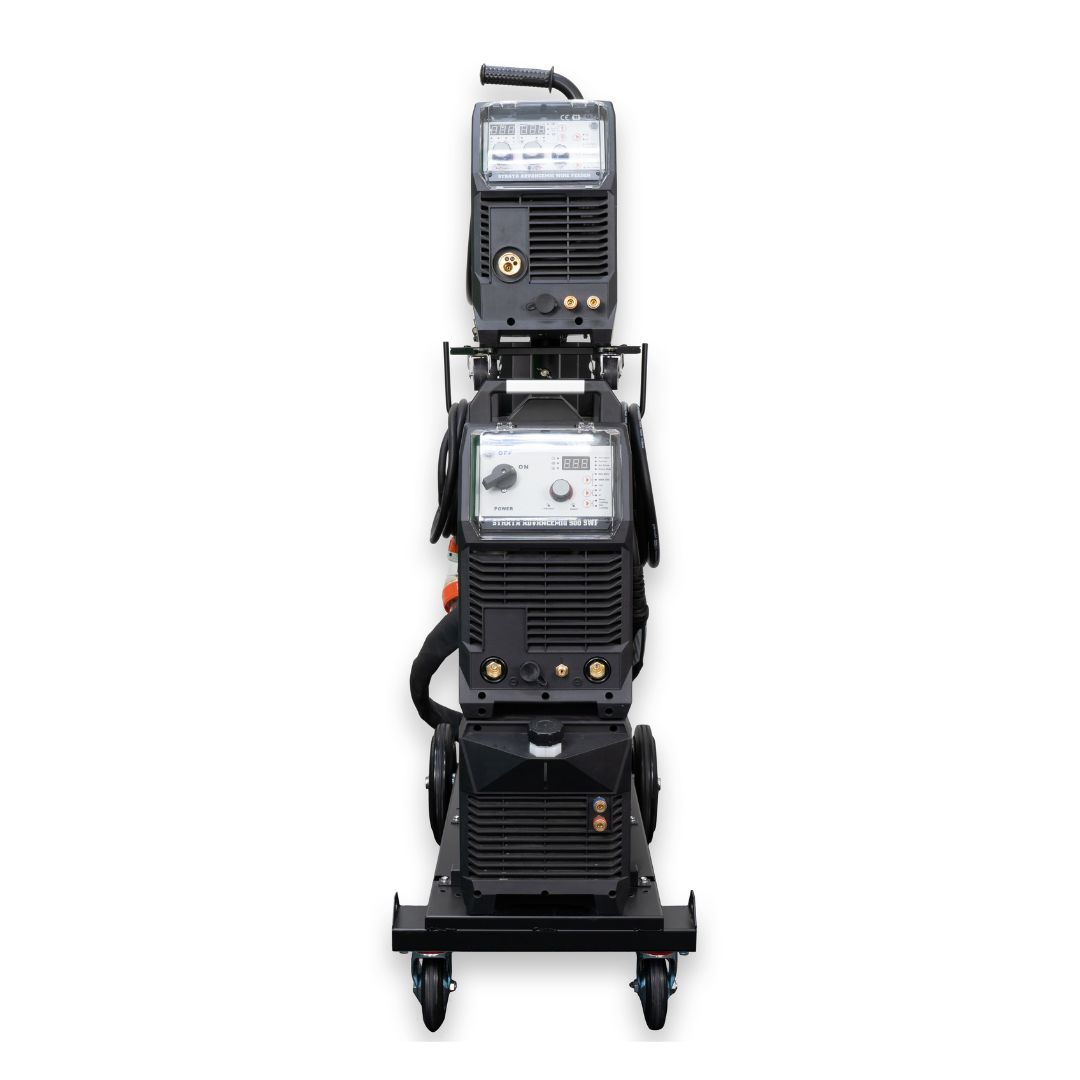

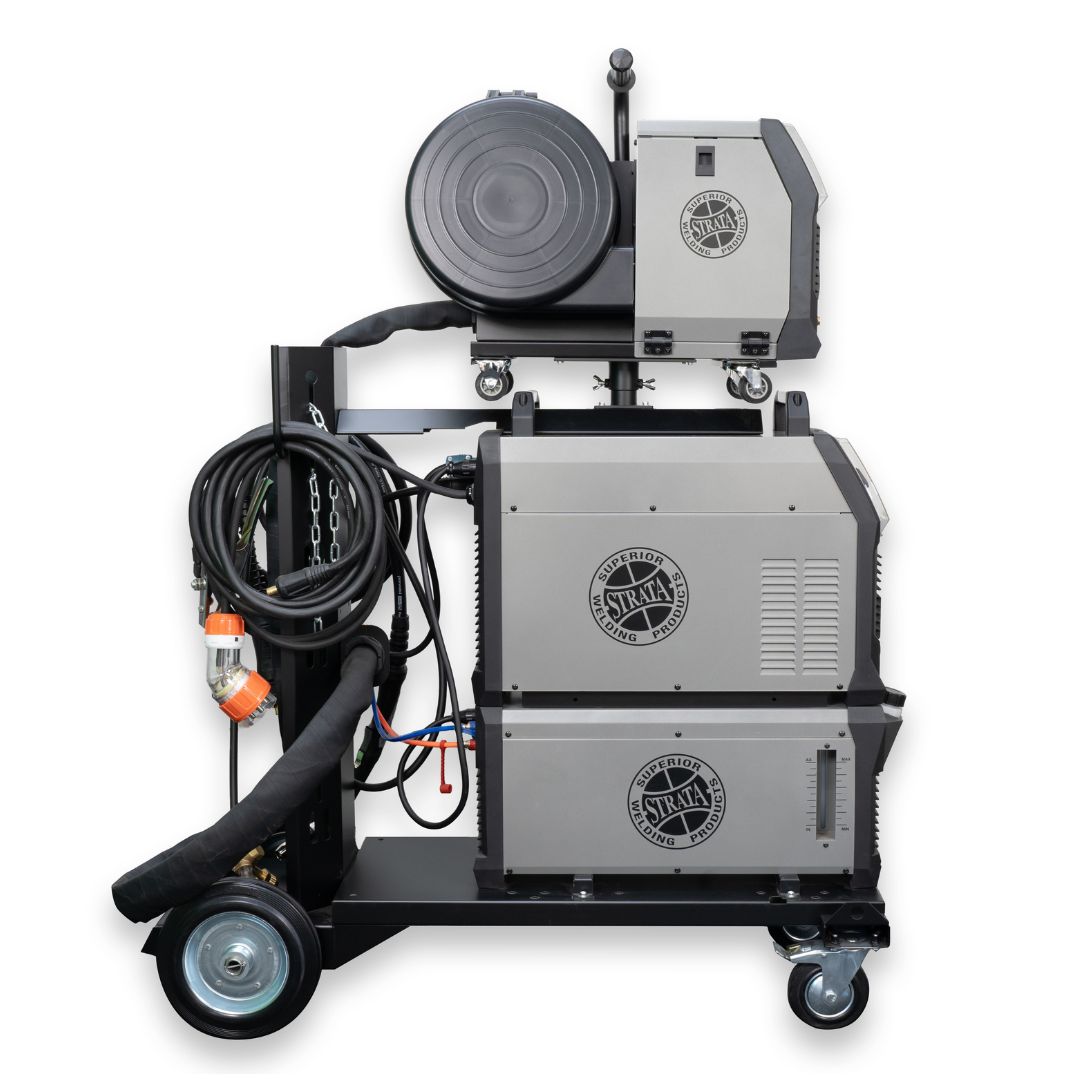

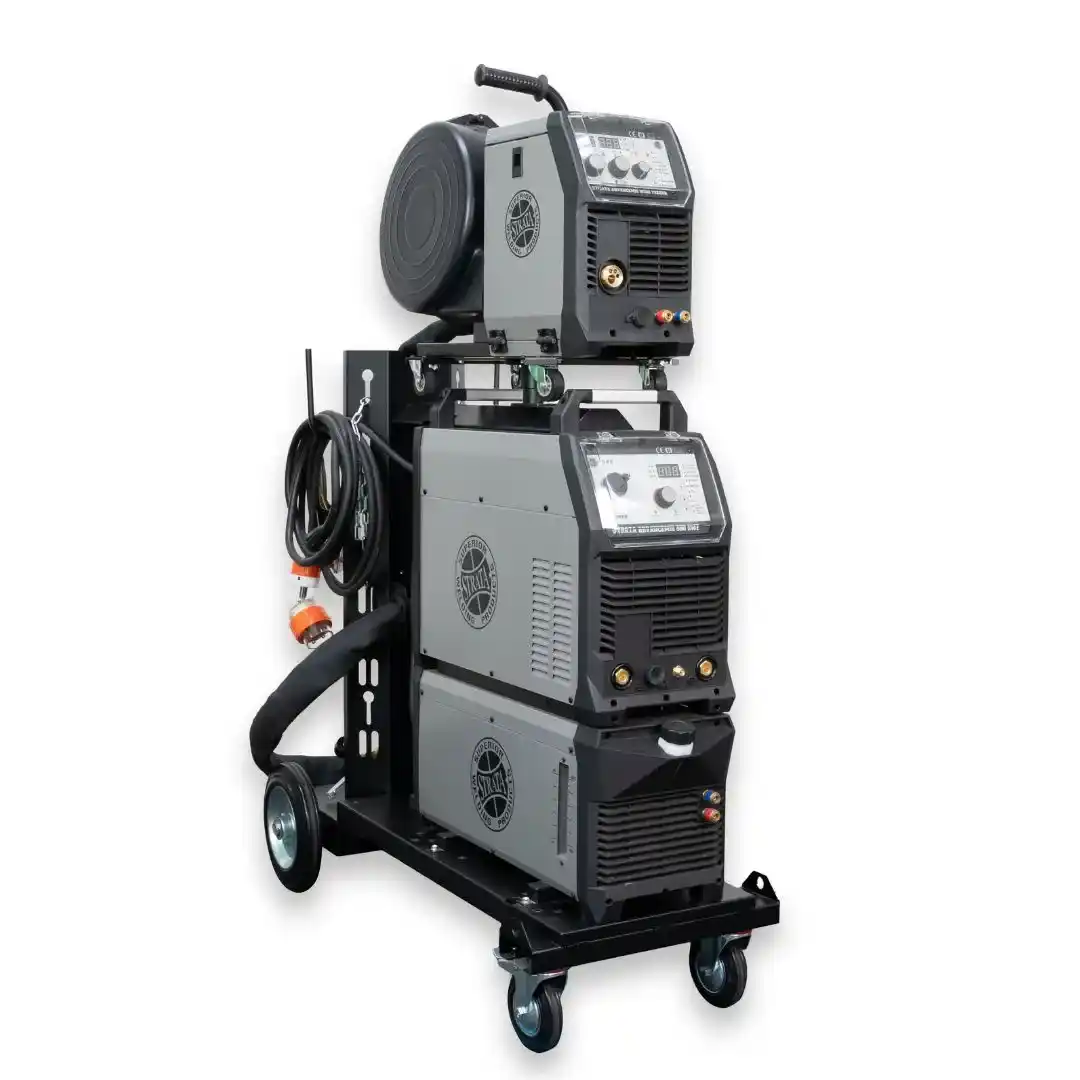

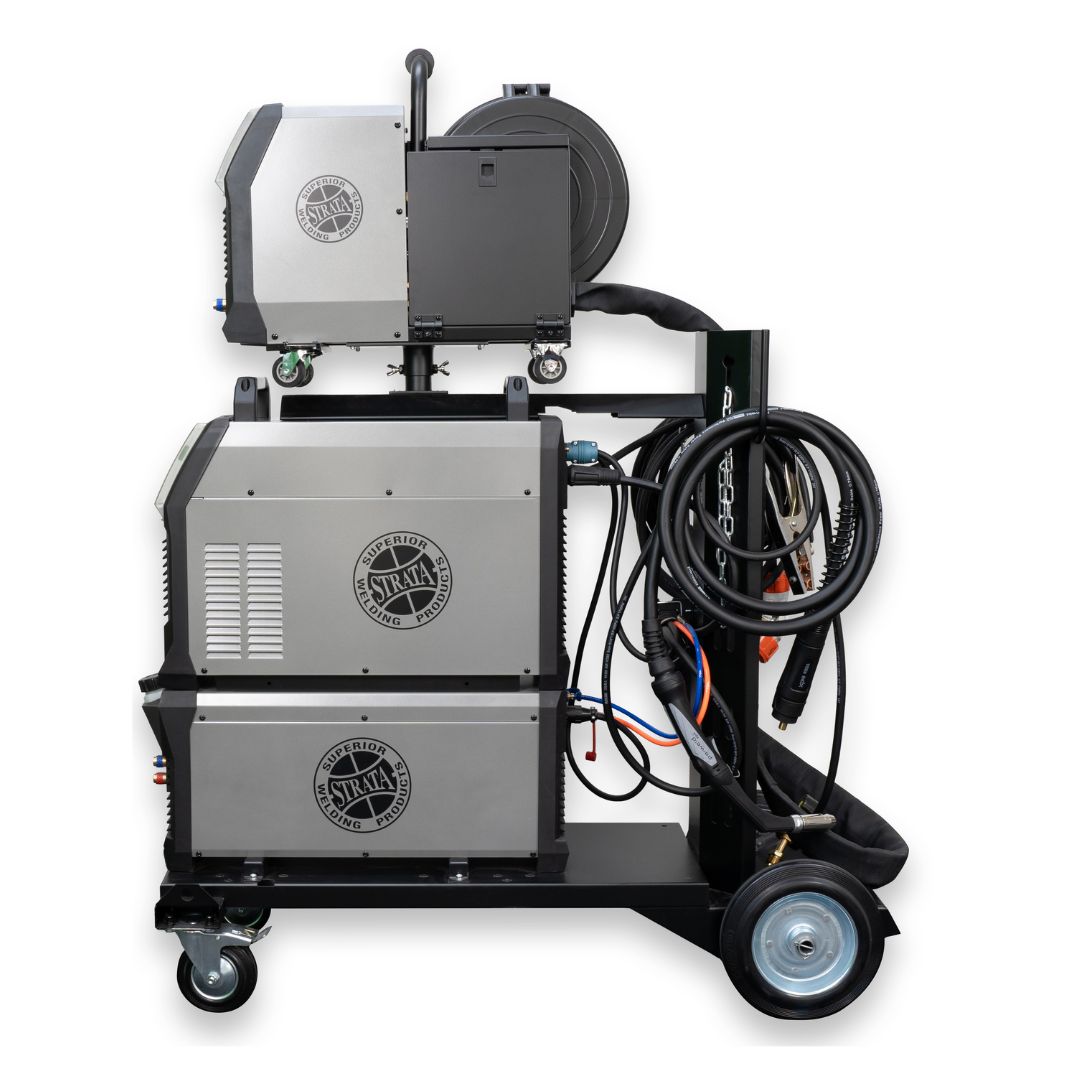

Strata AdvanceMig500 Synergic Inverter Welder Water Cooled Package

Strata AdvanceMig500 500A Synergic Inverter MIG/MMA/TIG Welder SWF C/W Wire Feeder, Water Cooler, Trolley, 10M Interconnect Cable, MB501 Mig Torch, Arc Lead Set & Gas Regulator

SKU: 17821

Product Overview

Strata AdvanceMig500 Synergic Inverter Welder Water Cooled Package

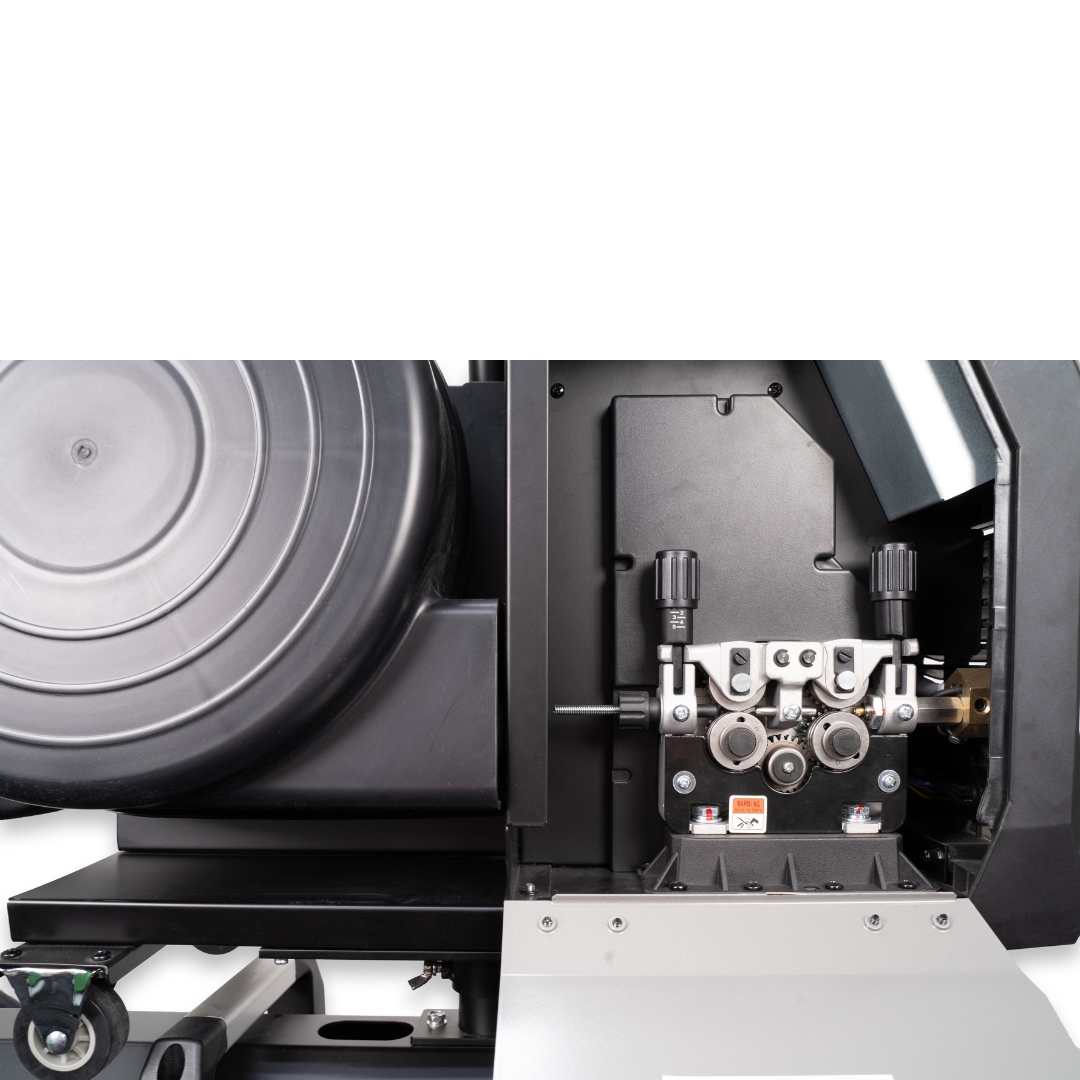

State of the art synergic technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for rugged heavy work day in and day out

Key Features:

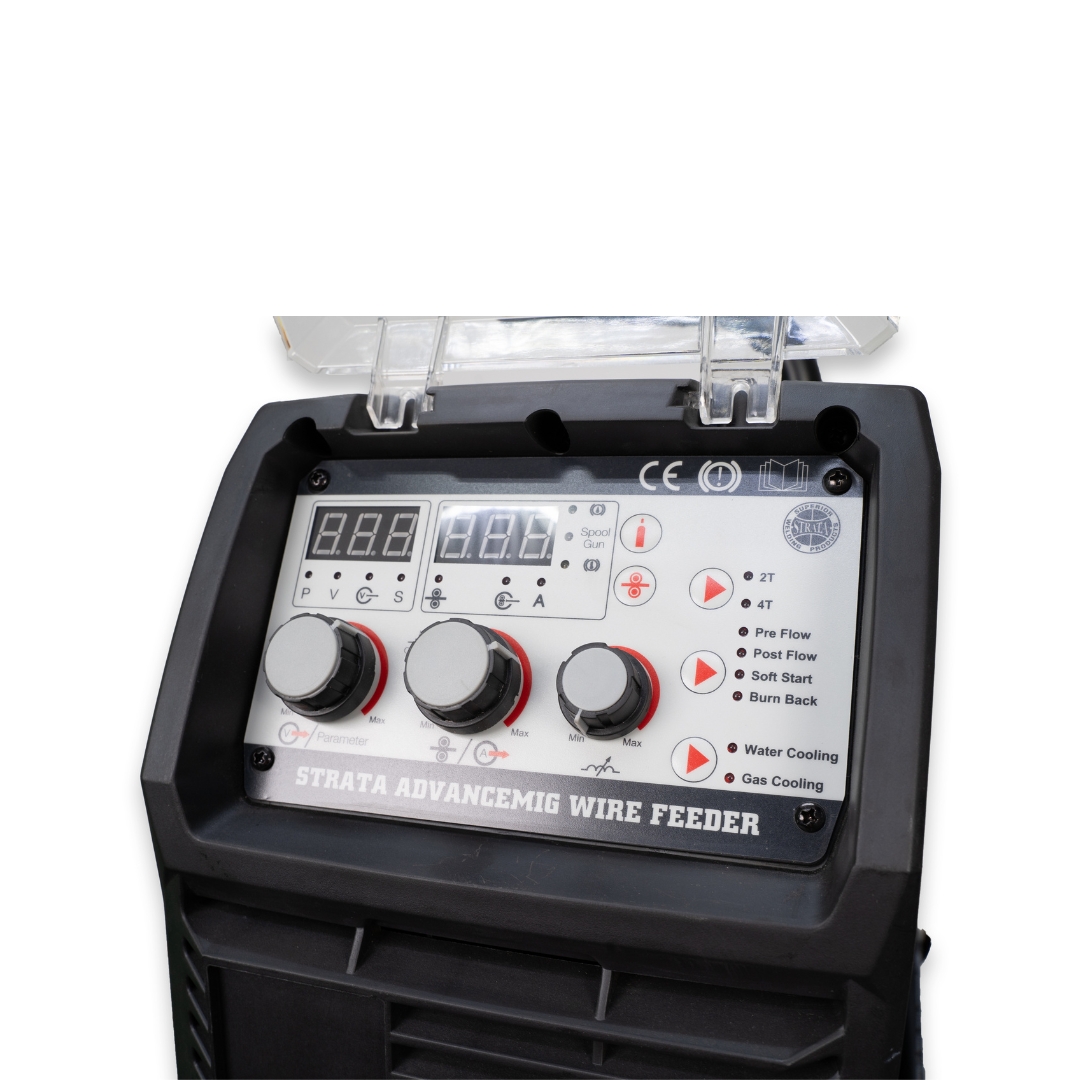

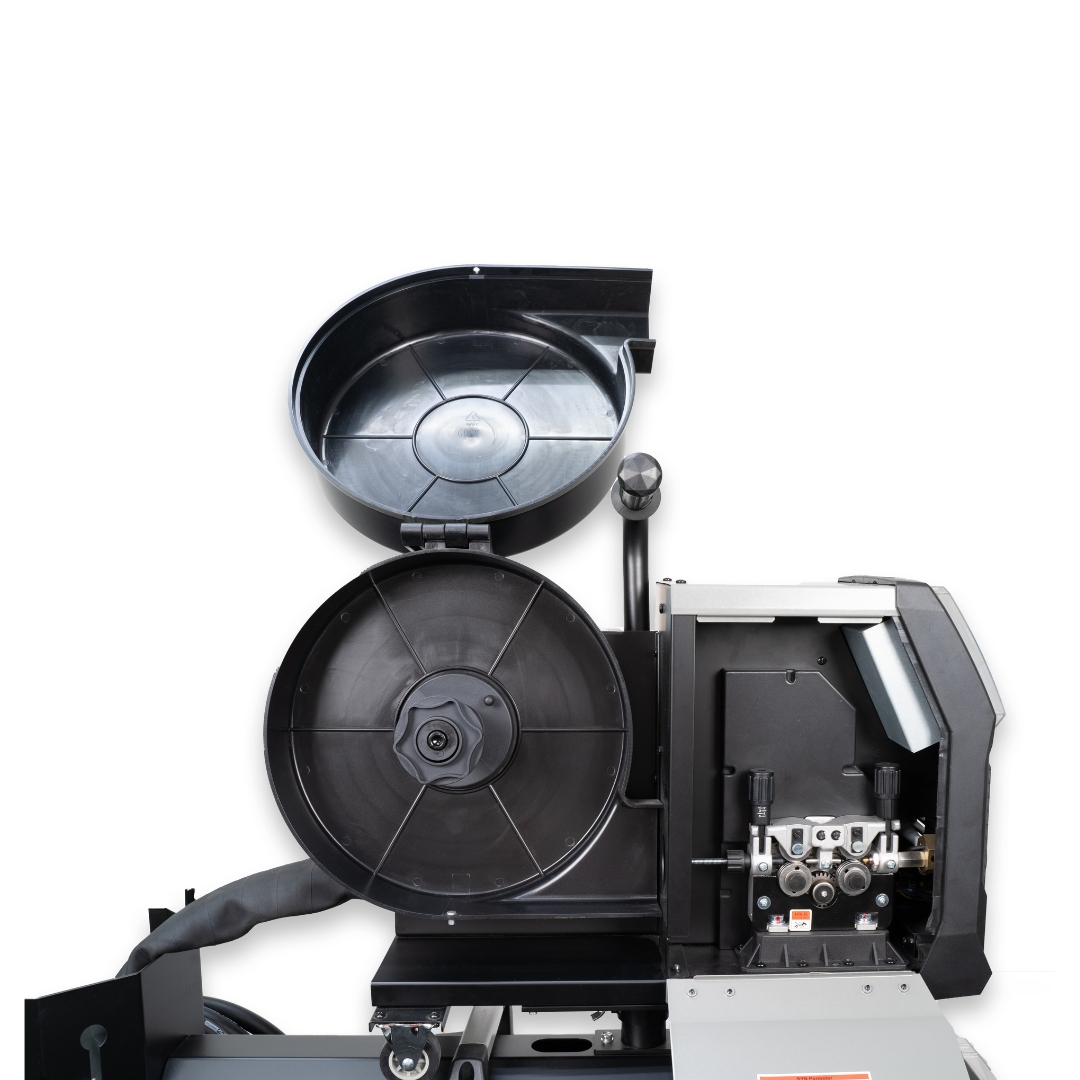

  • Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
  • Digital microprocessor control system for superior & dynamic arc characteristics

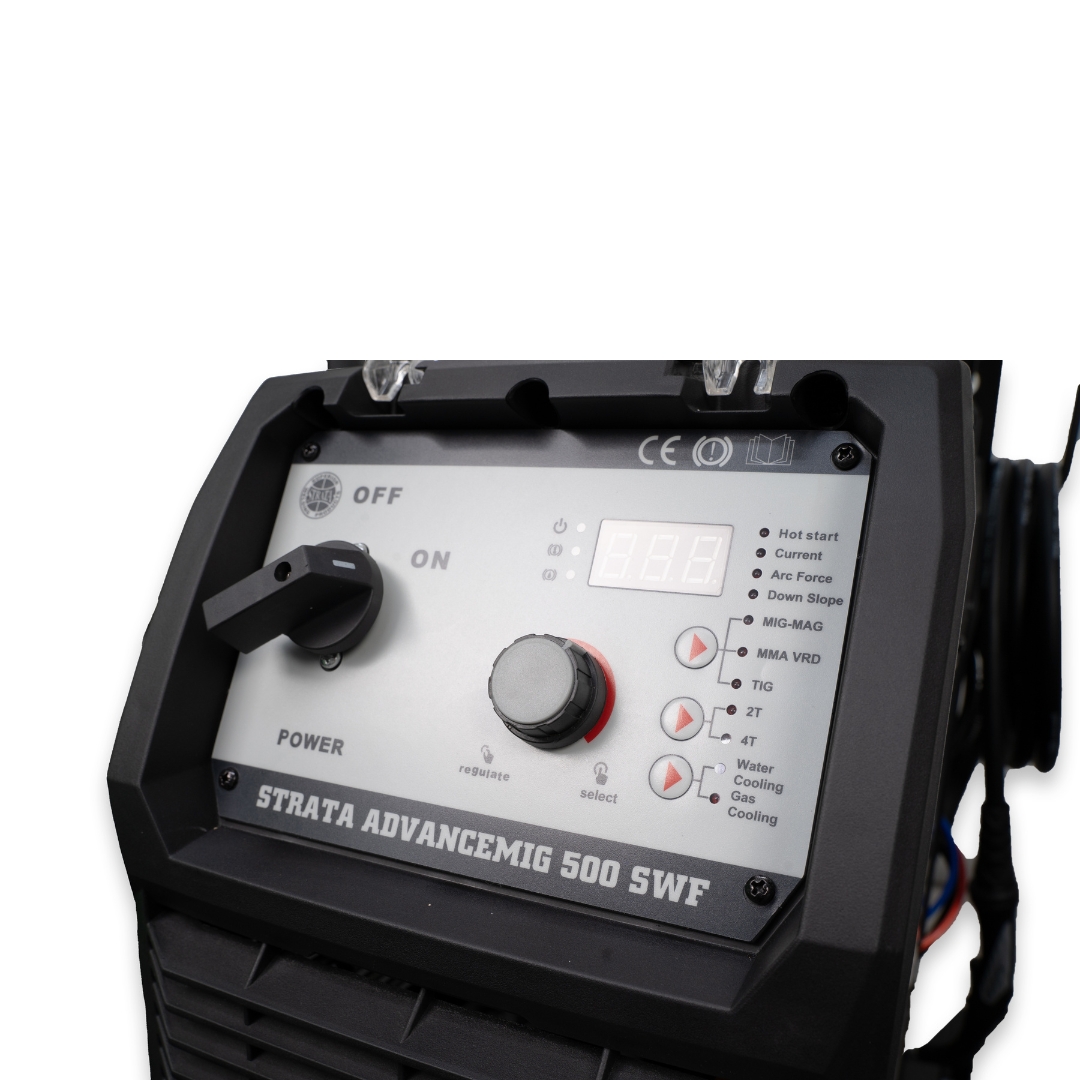

  • Modular power source can be used individually for MMA, arc air gouging and lift TIG welding
  • Synergic mig operation for optimum welding results every time
  • Lift TIG operation with down slope and remote current control
  • MIG waveform (inductance) control for great arc control and smoother welding results
  • Damage resistant Industrial casing with front panel protection
  • Wire inching and gas purge control
  • Safe and simple set up and easy to use
  • Adjustable pre flow, post flow, burn back and soft start settings
  • 2T/4T trigger operation with crater control settings
  • Adjustable arc force, hot start & automatic anti stick control
  • Dual digital display meters for accurate pre setting and feedback of welding parameters & output
  • Power source wind tunnel cooling construction
  • Protection against environmental contamination

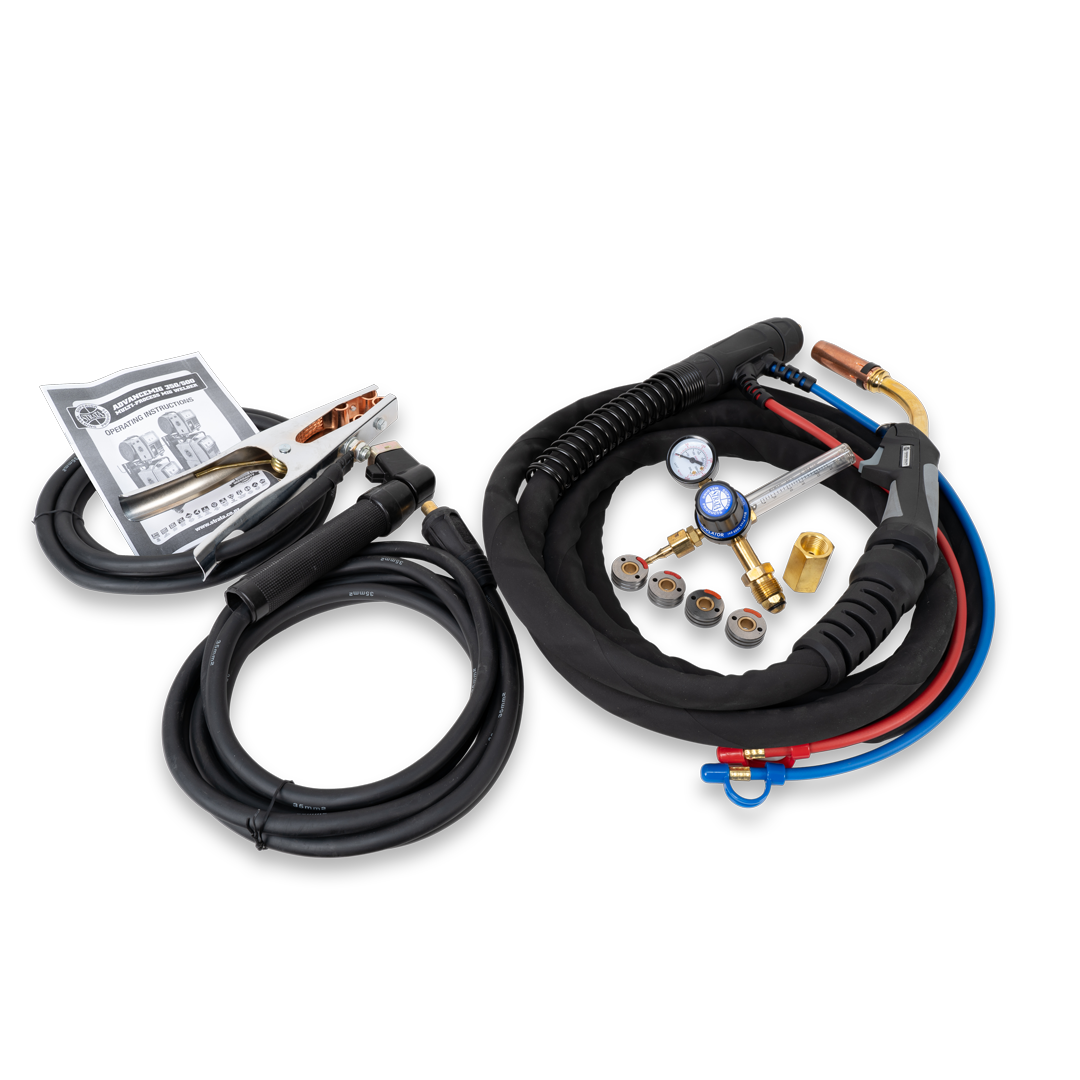

  • Package includes: Strata AdvanceMig500 500A Synergic Inverter MIG/MMA/TIG Welder, Wire Feeder, Water Cooler, Trolley, 10M Interconnect Cable, MB501 4M Mig Torch, Arc Lead Set & Gas Regulator.

Technical Specifications

Specifications -
Power Source Dimensions605x240x445mmWeight30kg
Wire Feeder Dimensions600x290x480mmWire Feeder Weight16kg
Trolley Dimensions1050x440x1100mmTrolley Weight32kg
Storage Compartment Dimensions620x240x290mmStorage Compartment Weight11kg
Water Cooler Dimensions620x240x290mmWater Cooler Weight18kg
Complete Package Dimensions1050x44x1450mmComplete Package Weight110kg
Input Power Supply400V AC 3 Phase 32A 50/60Hz400V AC 3 Phase 32A 50/60HzMaximum Input Current26A
Generator Capacity25KVAMIG Output Voltage10V - 50V
MIG Output Current40A - 500AMIG Duty Cycle500A@60%, 400A@100%
Wire Feeding Speed2.4 - 18m/minMMA Current Output40A - 500A
MMA O/C Voltage67VTIG Duty Cycle500A@60% 400A@100%
TIG Current Output40A-500AInsulation ClassIP23
StandardsEN60974-1:2012MMA Rod Size1.6-4.0mm
Warranty (Months)48 MonthsPower Efficiency0.85
Spool SizeD200/D300 5kg/15kg

Documents & Downloads

document
Information Sheet PDF • 2.1MB
document
Spare Parts List
document
Instruction Manual PDF • 15.7MB
document
Safety Data Sheet

FAQ's

What types of welding can the Strata AdvanceMig500 perform?

Can this welder handle heavy-duty industrial use?

Is the setup complicated?

What does “synergic inverter welder” mean?

How does the water cooling system benefit me?

Can I fine-tune arc characteristics manually?
